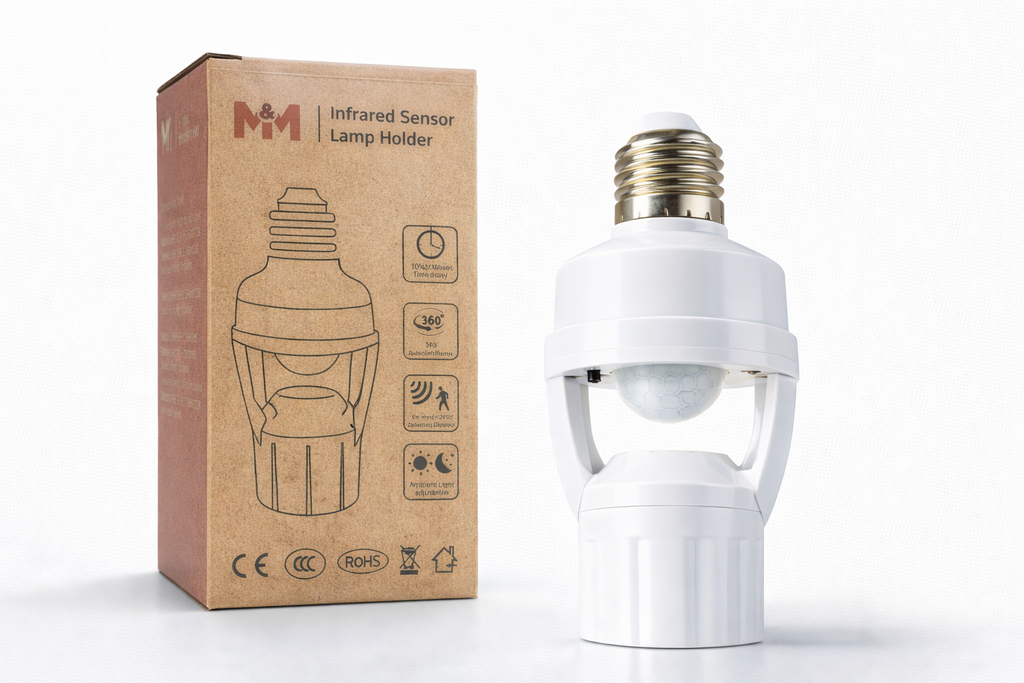

Infrared Sensor Bulb Holder

7-Day Replacement Warranty

A motion sensor light bulb socket adapter is a device that fits between a light bulb and its socket to add motion detection functionality to a regular light bulb. When motion is detected nearby, the sensor triggers the light bulb to turn on automatically. After a set period of no motion, the light turns off.

Key Components

• Base Screw (Edison Screw Base):
  • The metallic screw part at the bottom.
  • Designed to fit into standard light bulb sockets (usually E26 or E27 size).
  • Allows electrical connection to the socket.
• Light Bulb Socket on Top:
  • The white socket on the top side where you screw in the light bulb.
  • Acts as a pass-through for power to the bulb.
• Motion Sensor (PIR Sensor):
  • The dome-shaped component in the middle is the Passive Infrared (PIR) sensor.
  • Detects infrared radiation from moving objects (usually humans or animals).
  • Triggers the circuit to turn the light on when motion is detected.
• Supporting Frame/Arms:
  • The three white arms hold the sensor dome in place and separate the bulb socket from the base.
  • Provides structural support.
• Control Circuitry (internal):
  • Not visible externally.
  • Processes sensor input and controls the power flow to the bulb.
  • Usually includes a timer and sensitivity adjustment.
• Adjustment Switches/Dials:
  • Small switches or dials on the device, visible near the sensor.
  • Typically control settings such as:
    • Sensitivity (how much motion triggers the sensor).
    • Time delay (how long the light stays on after motion stops).
    • Ambient light threshold (day/night operation).

How it Works

1. Installation:
   • Screw the device into a standard light bulb socket.
   • Screw a compatible light bulb into the device on top.
2. Operation:
   • When the PIR sensor detects motion within its range, it signals the internal circuitry.
   • The circuitry switches power on to the light bulb, turning it on.
   • If no motion is detected for the preset delay time, the circuitry switches the power off, turning the light off.
3. Power Supply:
   • The device is powered directly from the socket's electrical supply (usually AC mains).

Features & Specifications (Typical)

• Voltage: Usually supports 110-240V AC, depending on region.
• Socket Type: Standard E26/E27.
• Detection Range: Typically 3-8 meters.
• Detection Angle: Around 120-180 degrees.
• Time Delay: Adjustable from a few seconds up to several minutes.
• Daylight Sensor: Prevents the light from turning on in daylight (optional feature).
• Load Capacity: Max wattage depending on the bulb type (e.g., max 60W for incandescent bulbs).

Applications

• Hallways and staircases.
• Bathrooms.
• Garages.
• Closets.
• Outdoor porch lights.
• Any area where automatic lighting based on motion is useful for convenience and energy saving.

Advantages

• Energy saving: Light only turns on when needed.
• Convenience: No need to manually switch lights.
• Security: Automatically illuminates spaces when someone approaches.
• Easy to install: Just screw in place, no wiring needed.

Limitations

• PIR sensors may not detect very slow movement or objects that don’t emit heat.
• Sensor range and angle can be limited.
• May trigger false positives due to pets or heating sources.
• Compatible only with bulbs that do not exceed the rated wattage.
