2 Phase Manual Changeover Switch

Rs.1,350.00

Manual Changeover Switch: 32 AMP

32 AMP
63 AMP
75 AMP
Order in the next [totalHours] hours %M minutes to get it between and
Description

7-Day Replacement Warranty for complete peace of mind

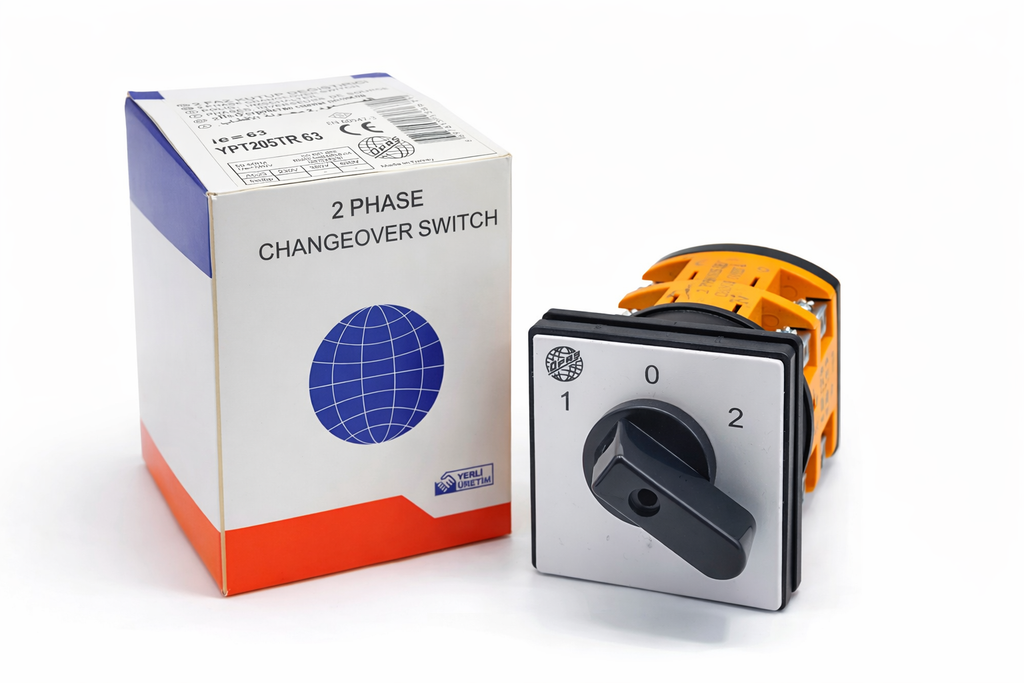

Product Overview: OPAS  2 Phase Changeover Switch

A OPAS 2 Phase Changeover Switch is an electromechanical device designed to manually switch between two power sources (e.g., mains and generator) in a 2-phase system. It's commonly used in industrial control panels, automation systems, and other applications where safe and reliable source selection is required.

Product Variants & Details

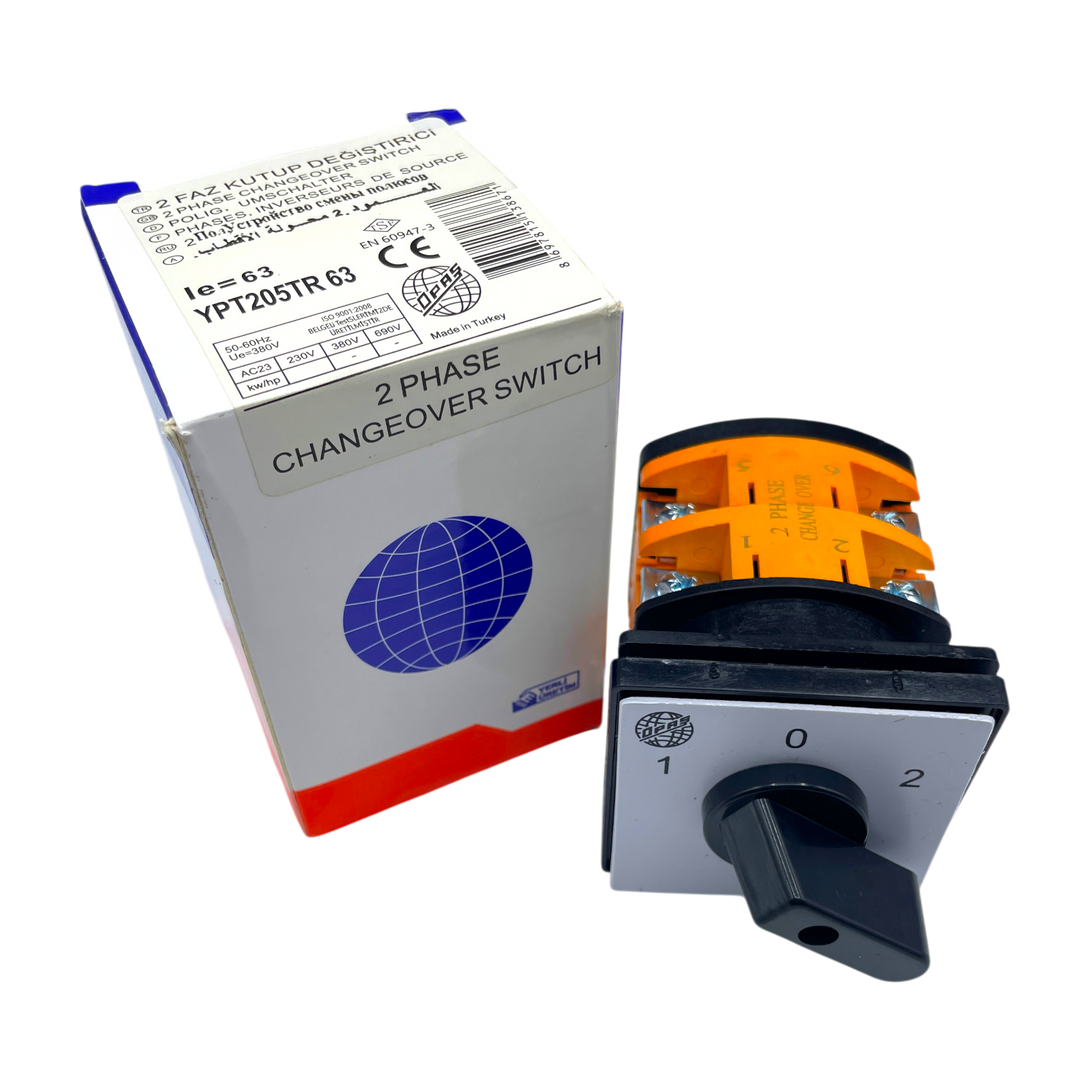

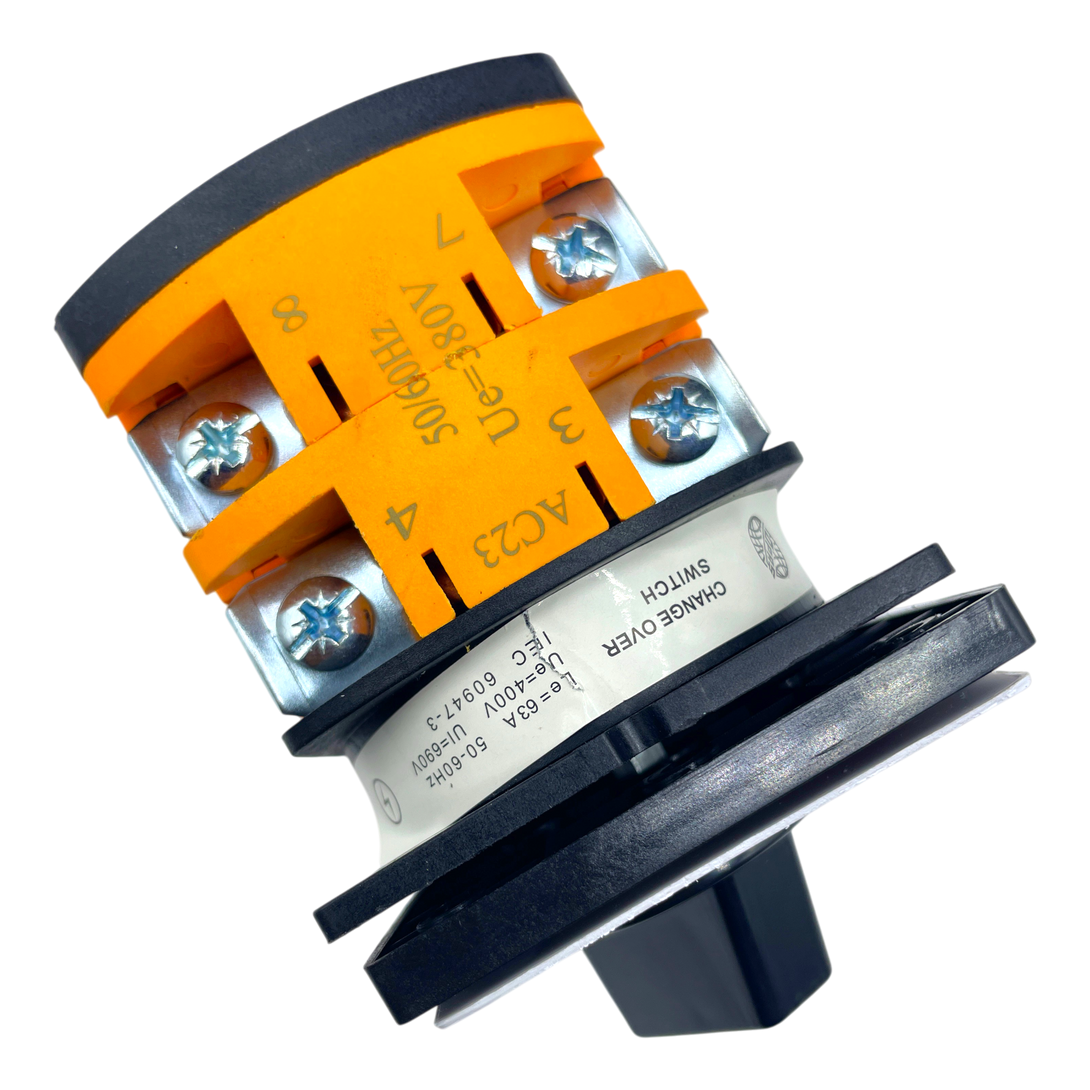

1. Model: YPT205TR63

  • Current Rating (Ie): 63A
  • Voltage Rating (Ue):
    • AC23: 230V / 400V / 690V
  • Poles: 2 (2 Phase)
  • Standards: EN 60947-3
  • Certifications: CE marked
  • Made in: Turkey
  • Switch Positions: 0 (OFF), 1 (Source 1), 2 (Source 2)

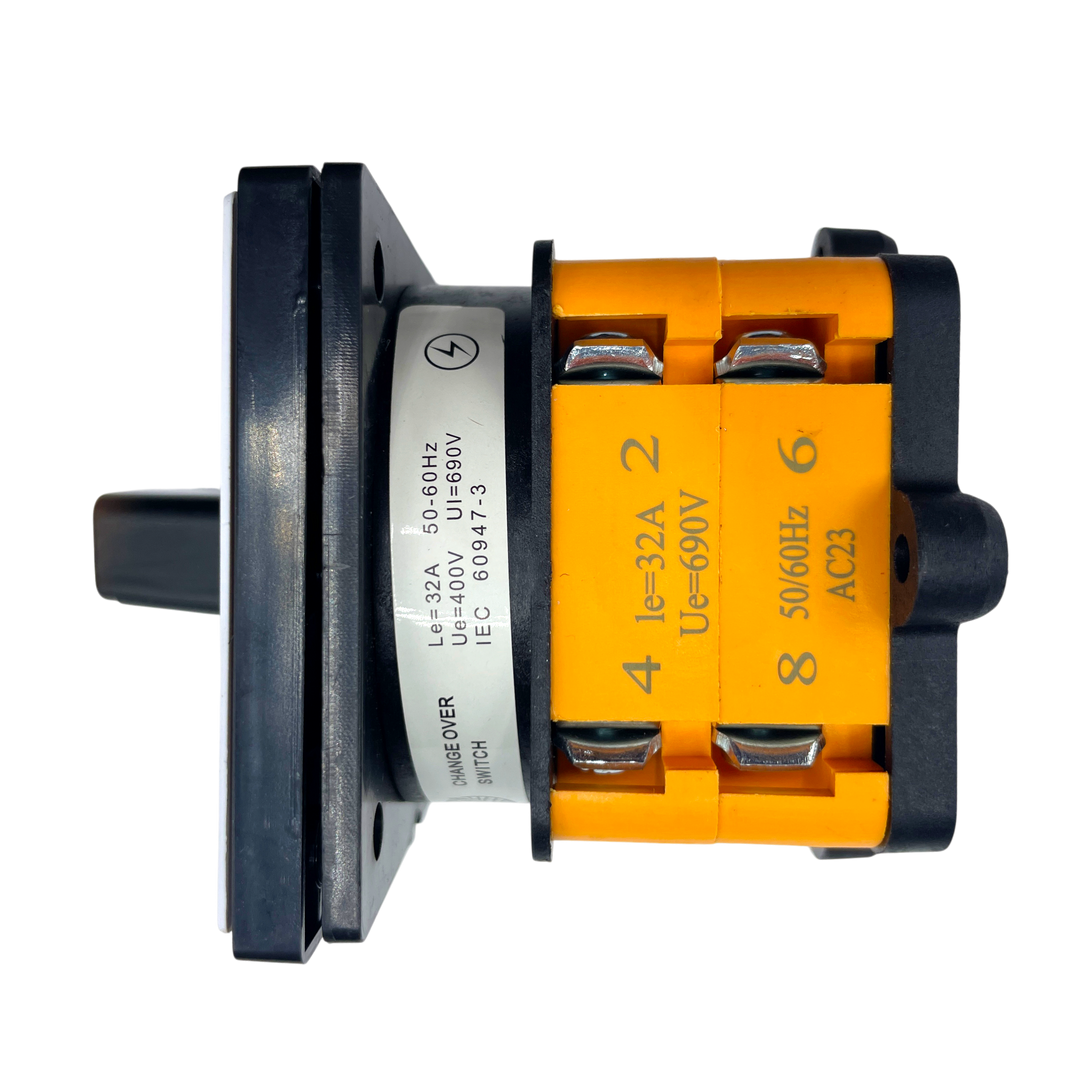

Model: YPT205TR32

  • Current Rating (Ie): 32A
  • Voltage Rating (Ue):
    • AC23: 230V / 400V / 690V
  • Poles: 2 (2 Phase)
  • Standards: EN 60947-3
  • Certifications: CE marked
  • Made in: Turkey
  • Switch Positions: 0 (OFF), 1 (Source 1), 2 (Source 2)

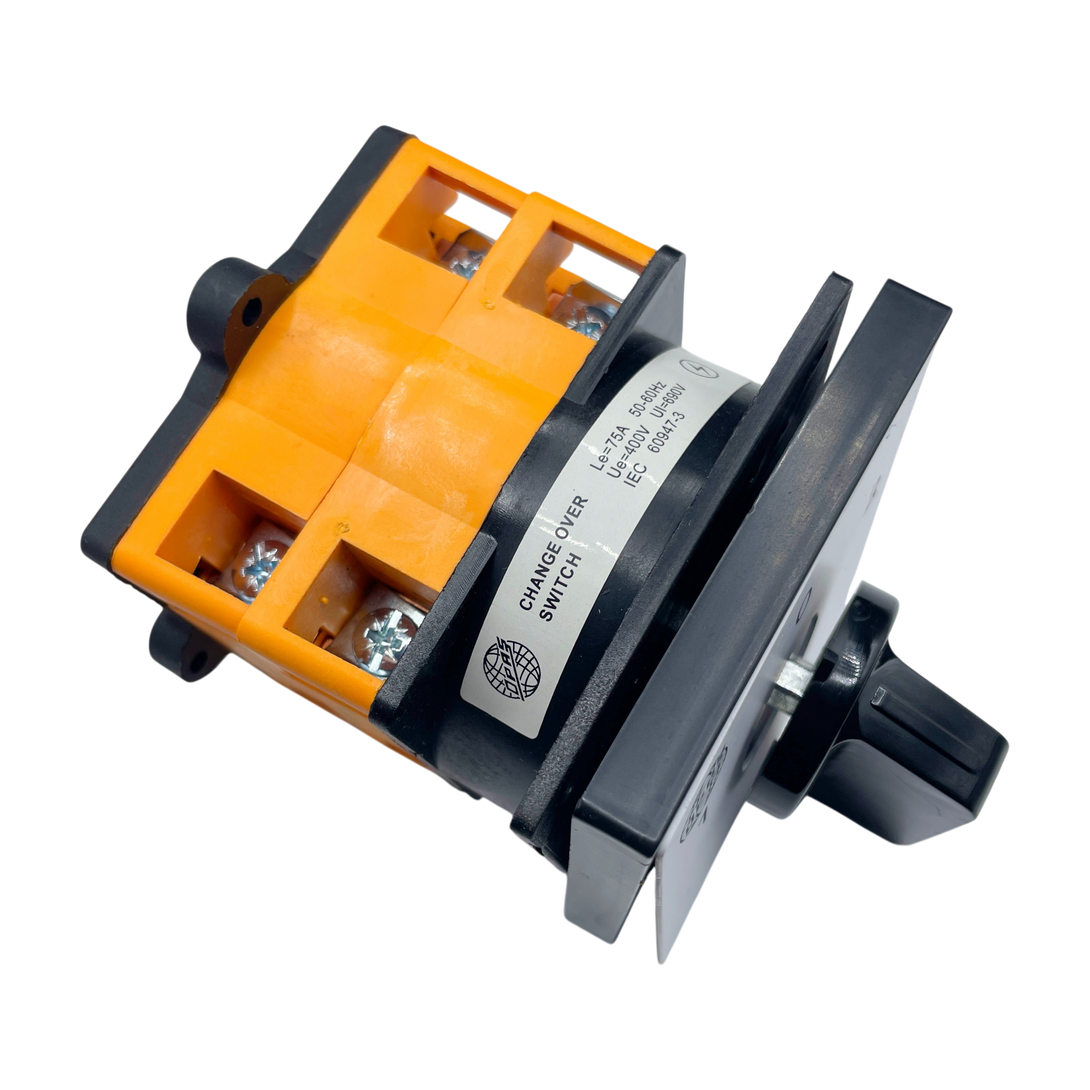

Model: YPT205TR75

  • Current Rating (Ie): 75A
  • Voltage Rating (Ue):
    • AC23: 230V / 400V / 690V
  • Poles: 2 (2 Phase)
  • Standards: EN 60947-3
  • Certifications: CE marked
  • Made in: Turkey
  • Switch Positions: 0 (OFF), 1 (Source 1), 2 (Source 2)

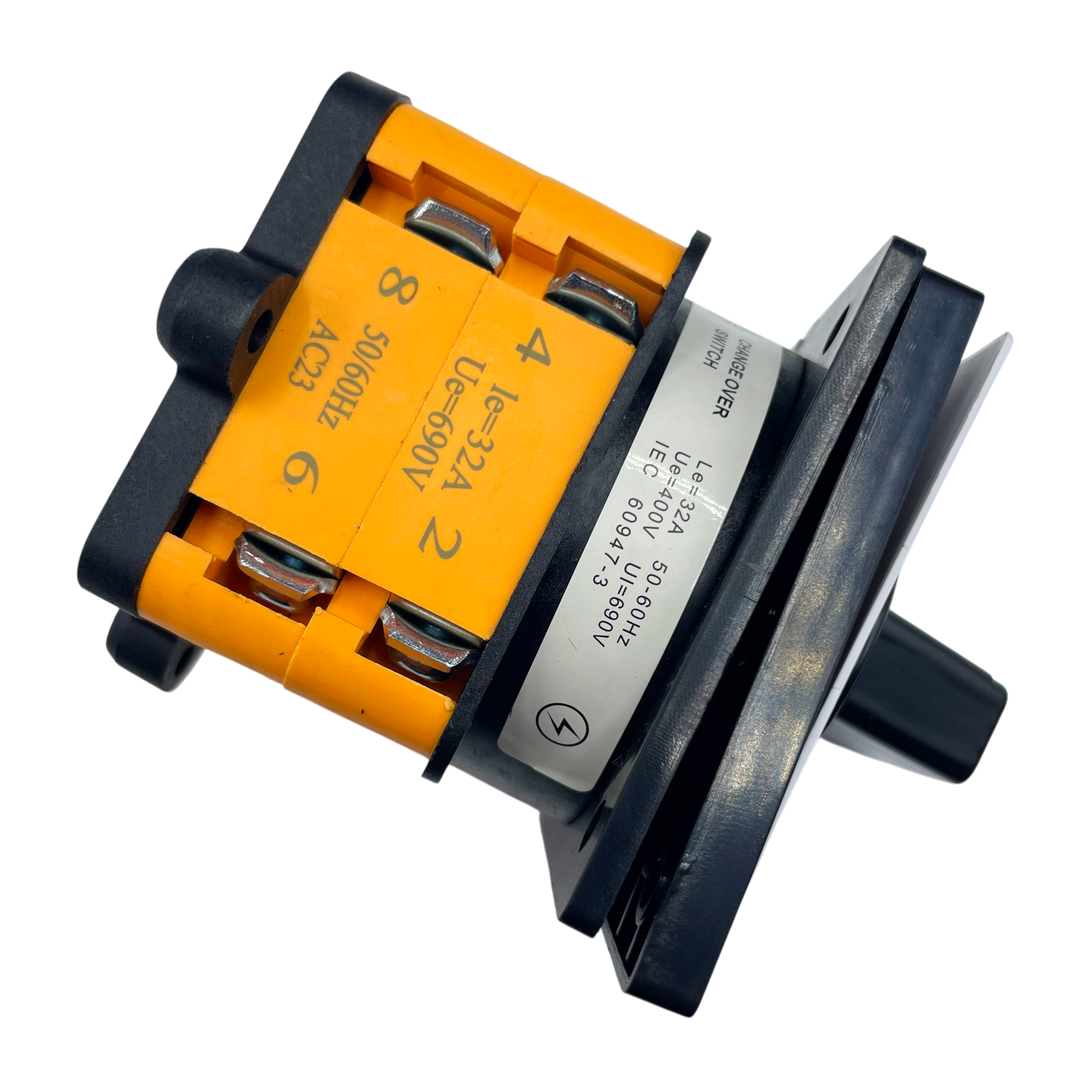

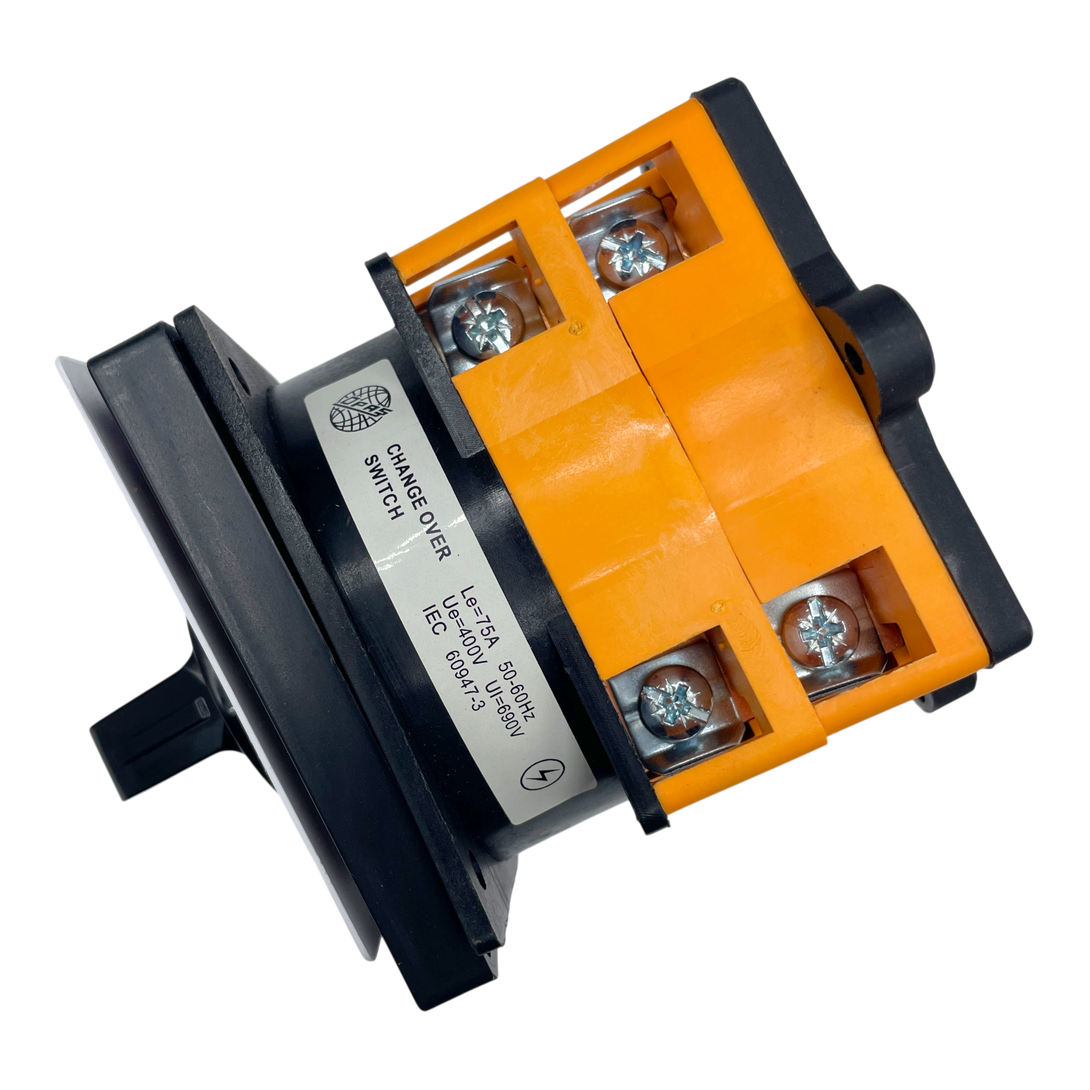

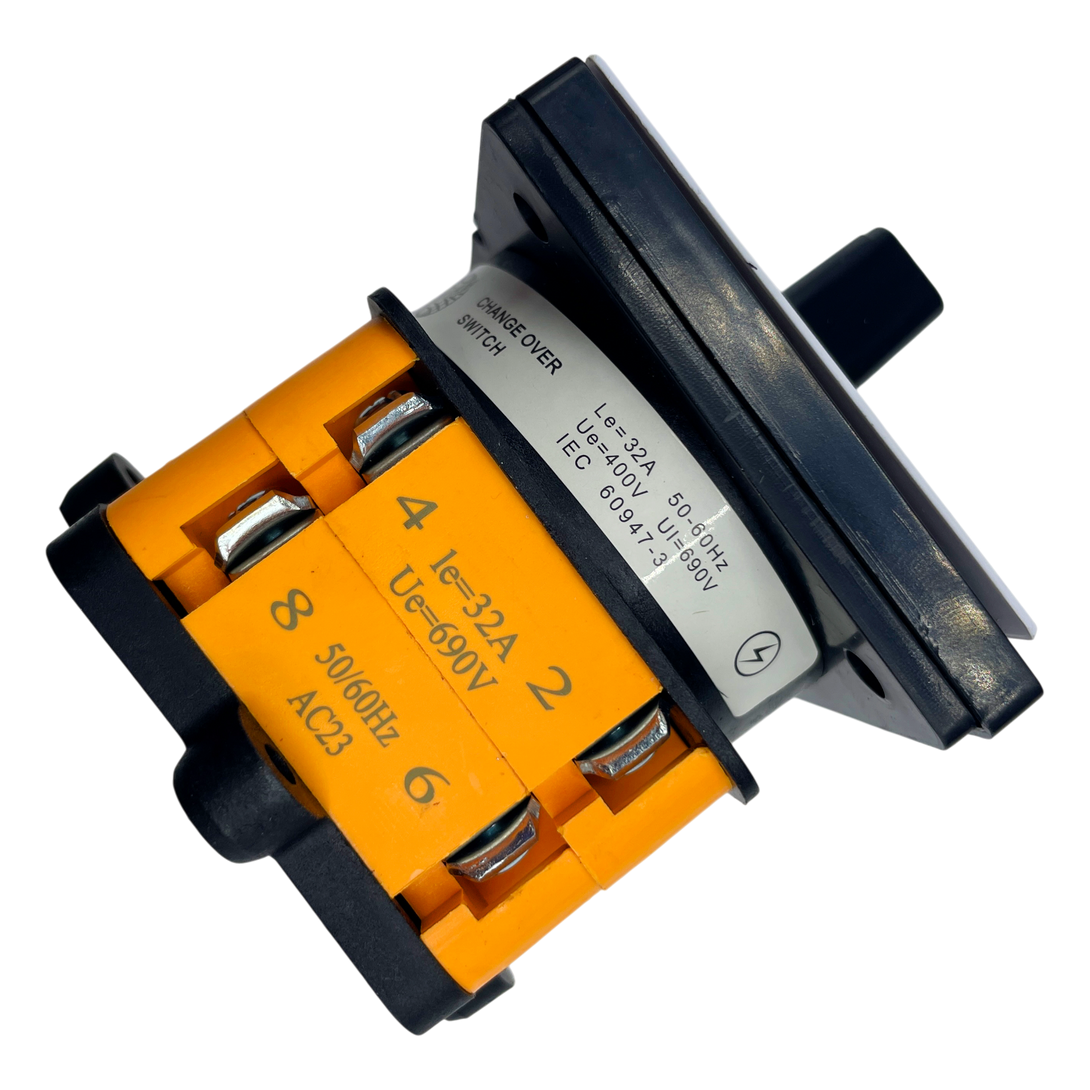

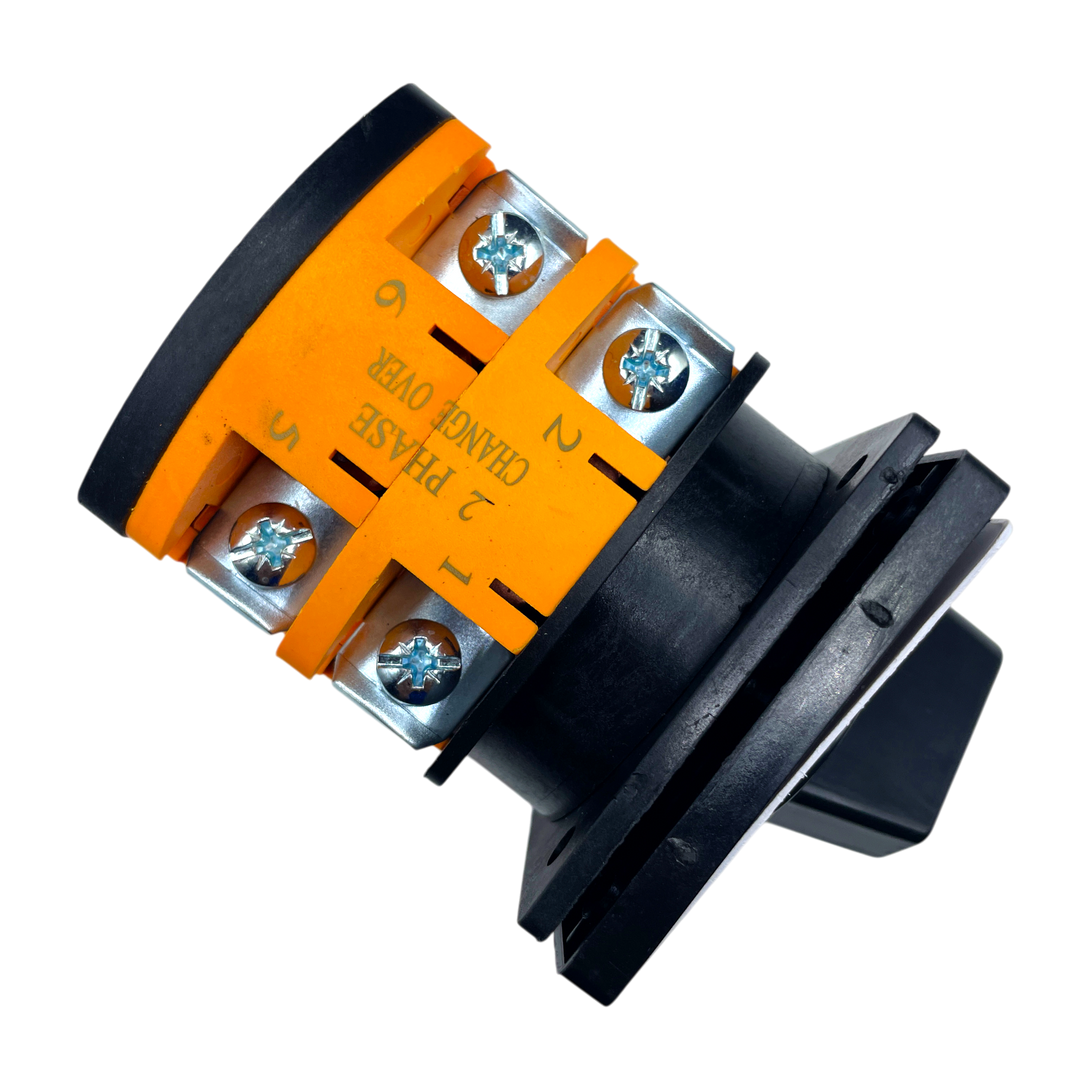

Mechanical Features

  • Switch Type: Rotary manual changeover

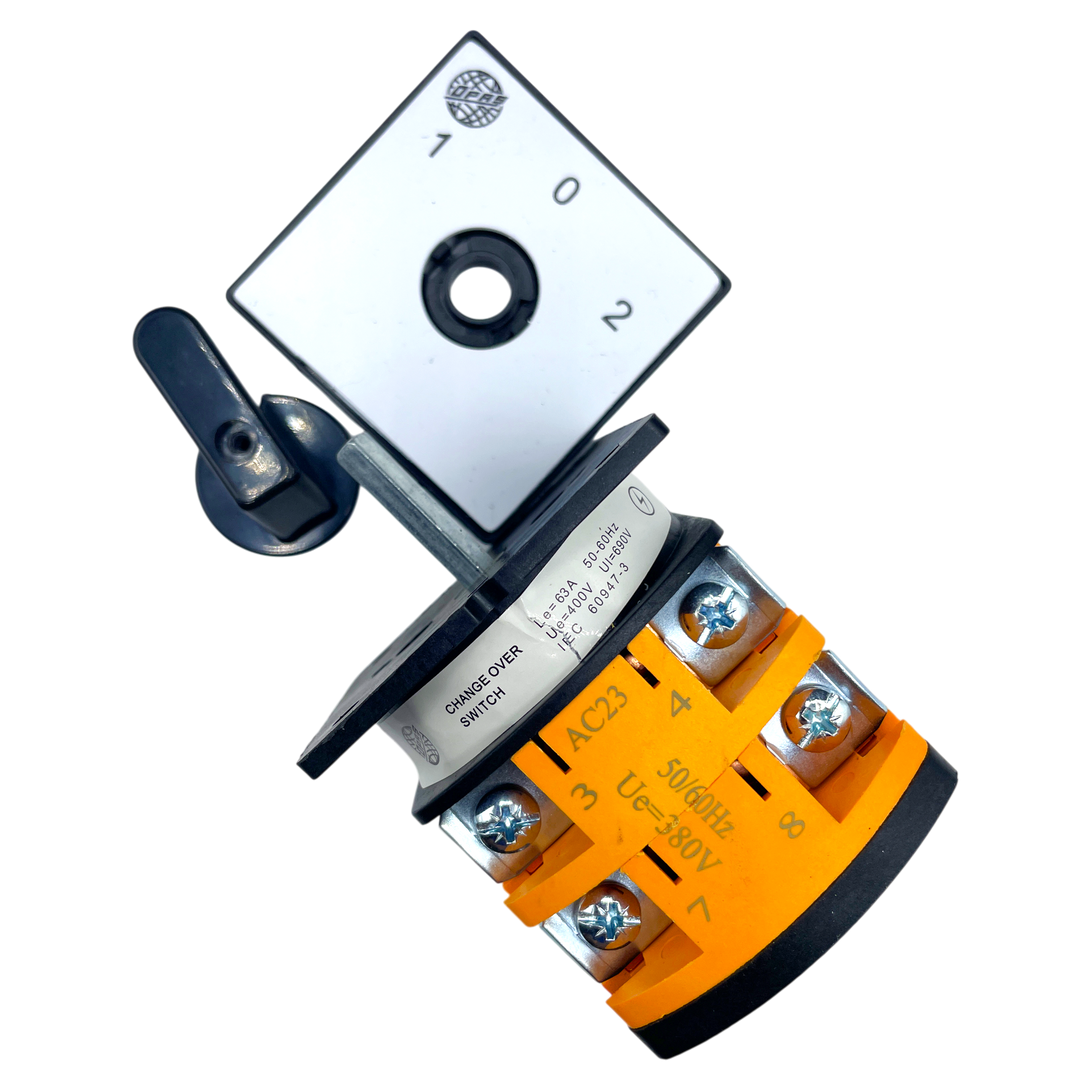

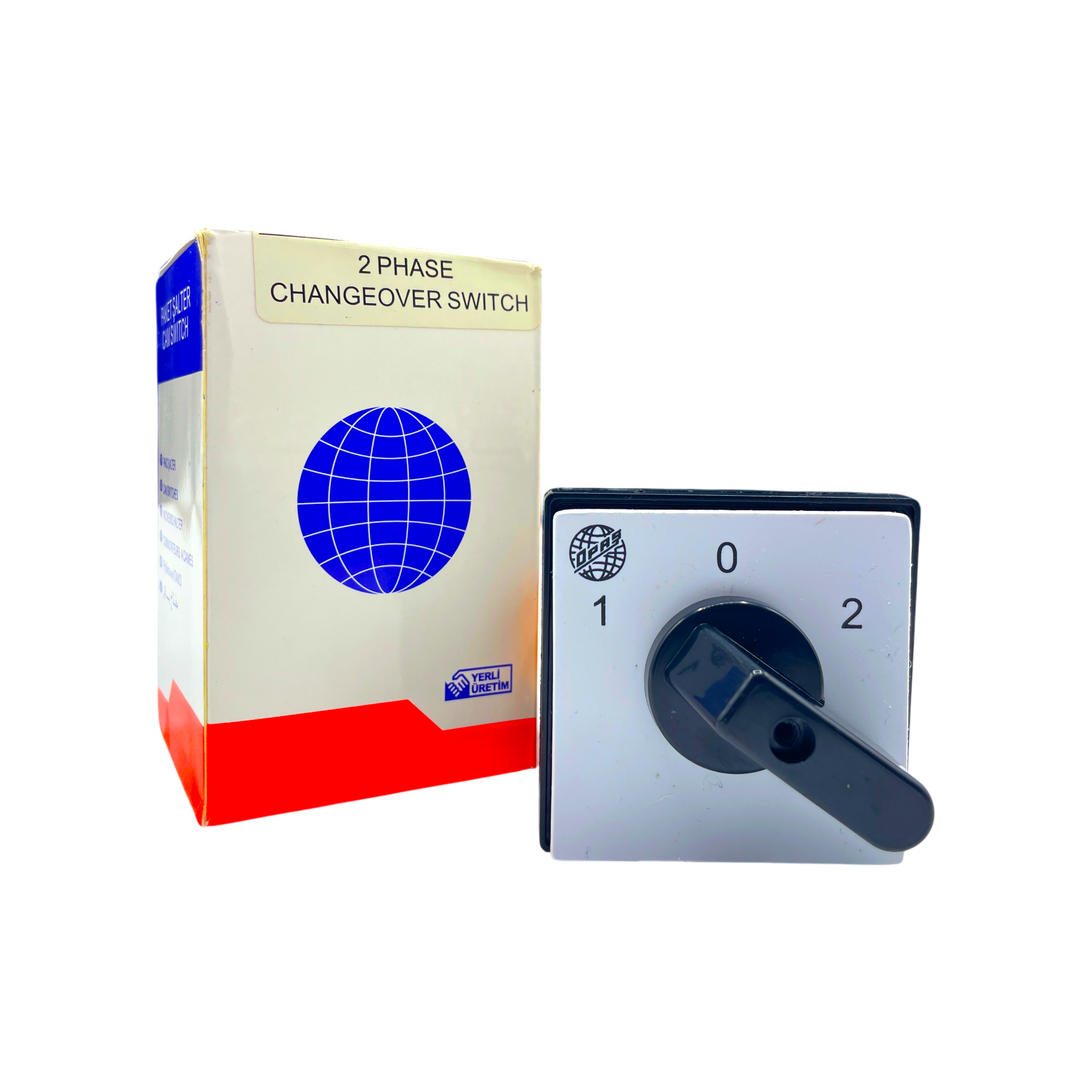

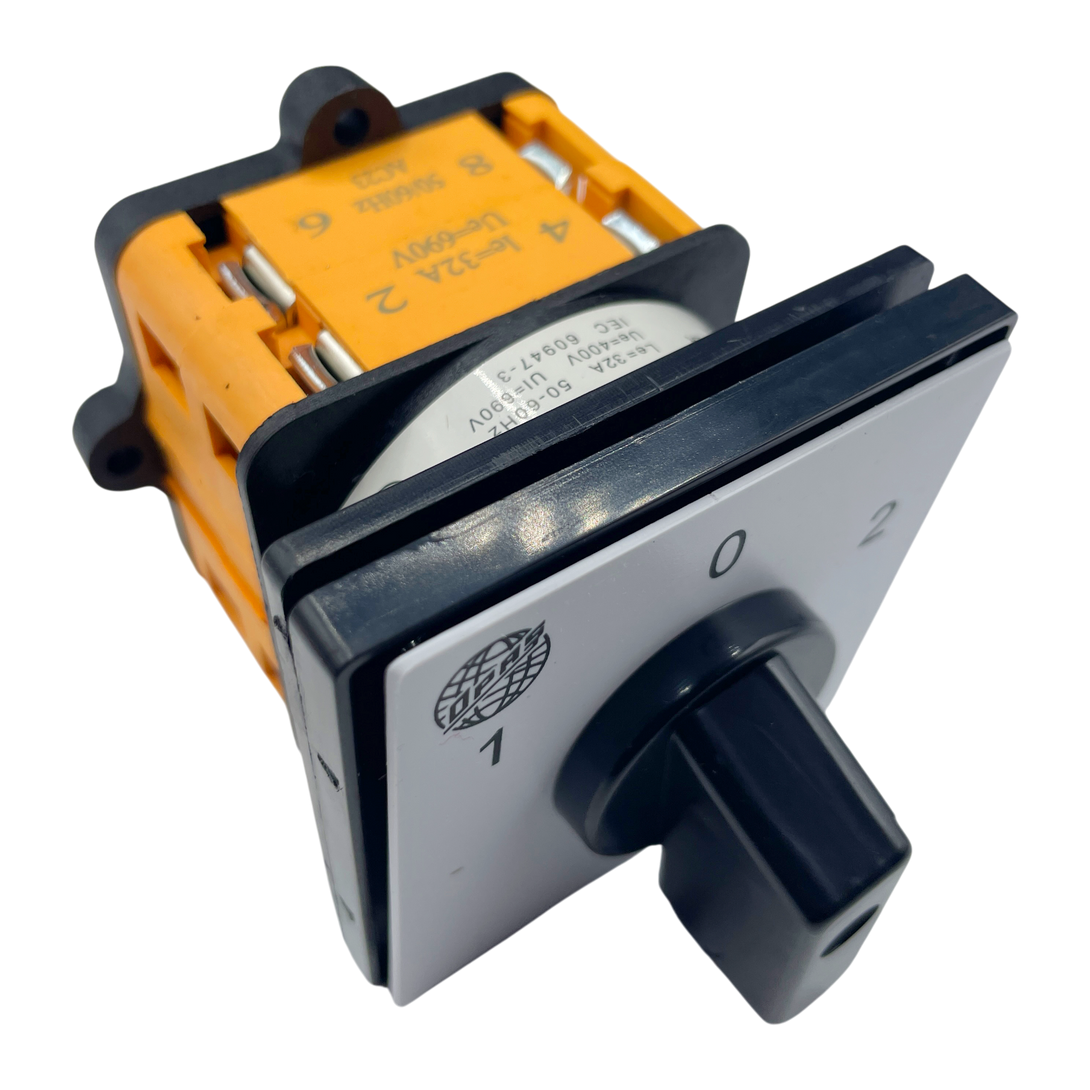

  • Front Plate: Labeled with positions 0, 1, 2 for clear indication
  • Construction Material: Thermoplastic housing with metal terminals
  • Mounting: Panel mounting type

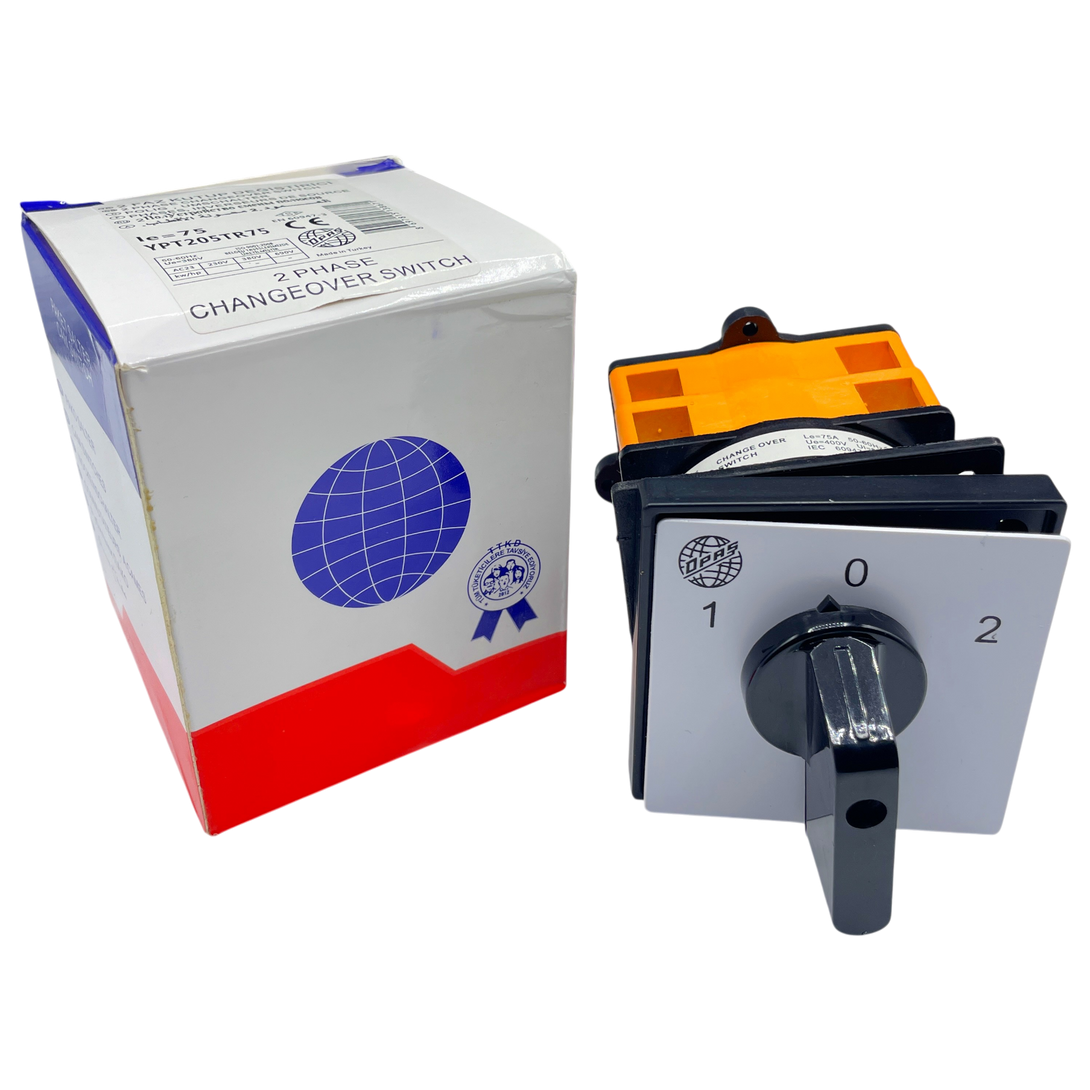

  • Color: Orange actuator body, black rotary knob, and white front panel.

Electrical Use Cases

  • Applications:
    • Manual transfer between power sources
    • Industrial machinery
    • Backup generator switching
    • Control panels for load management
  • Load Category: AC23 (Switching motor loads or other highly inductive loads)

Compliance and Safety

  • Standard: EN 60947-3 (Low-voltage switchgear and control gear – Switches, disconnectors, switch-disconnectors and fuse-combination units)
  • CE Marked: Yes
  • Usage Environment: Indoor industrial environments; should be installed in a protective enclosure.

Summary Table

Model Ie (Rated Current) Voltage Rating (AC23) Poles Compliance Origin
YPT205TR32 32A 230V / 400V / 690V 2 EN 60947-3, CE Turkey
YPT205TR63 63A 230V / 400V / 690V 2 EN 60947-3, CE Turkey
YPT205TR75 75A 230V / 400V / 690V 2 EN 60947-3, CE Turkey
Additional Information
Manual Changeover Switch

32 AMP, 63 AMP, 75 AMP
