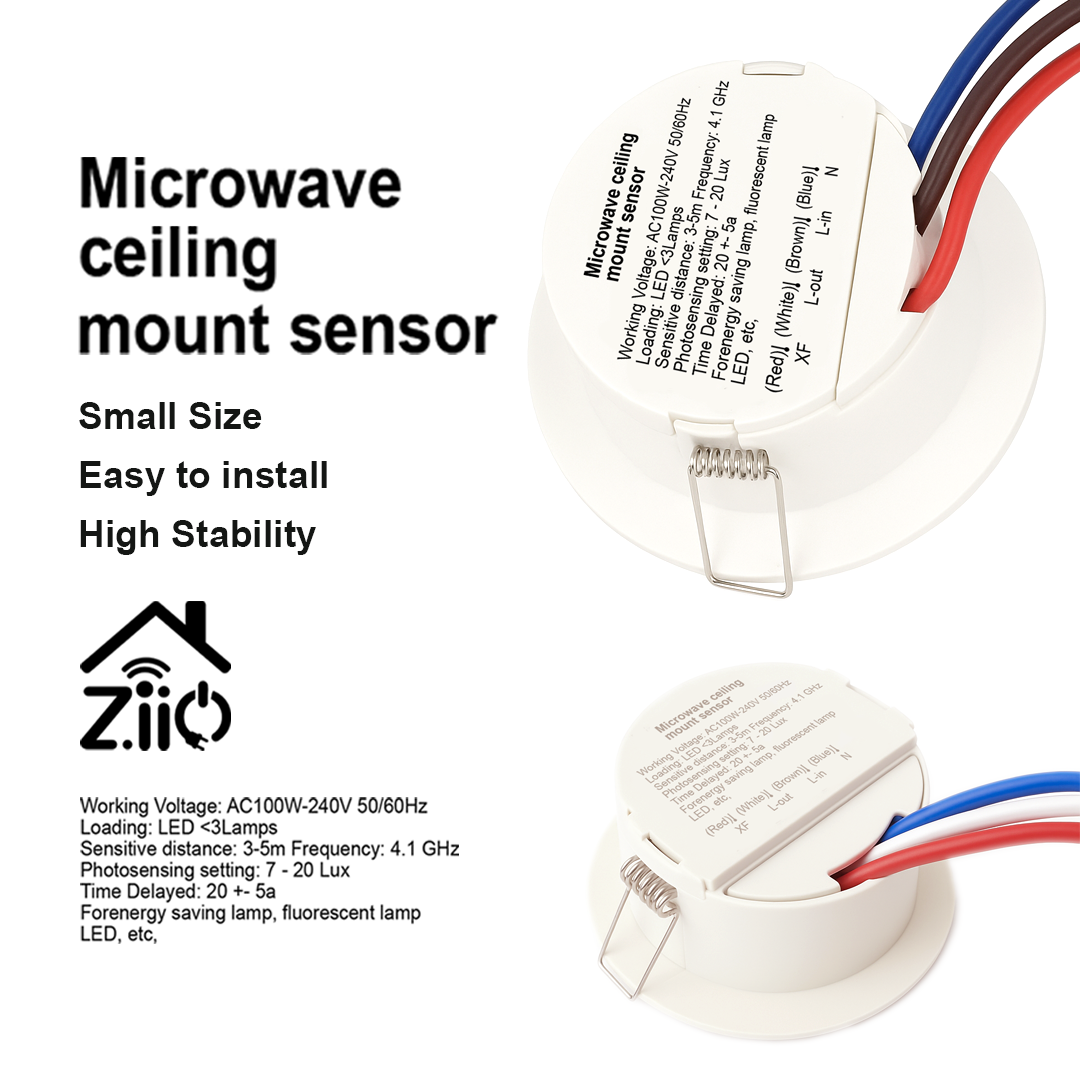

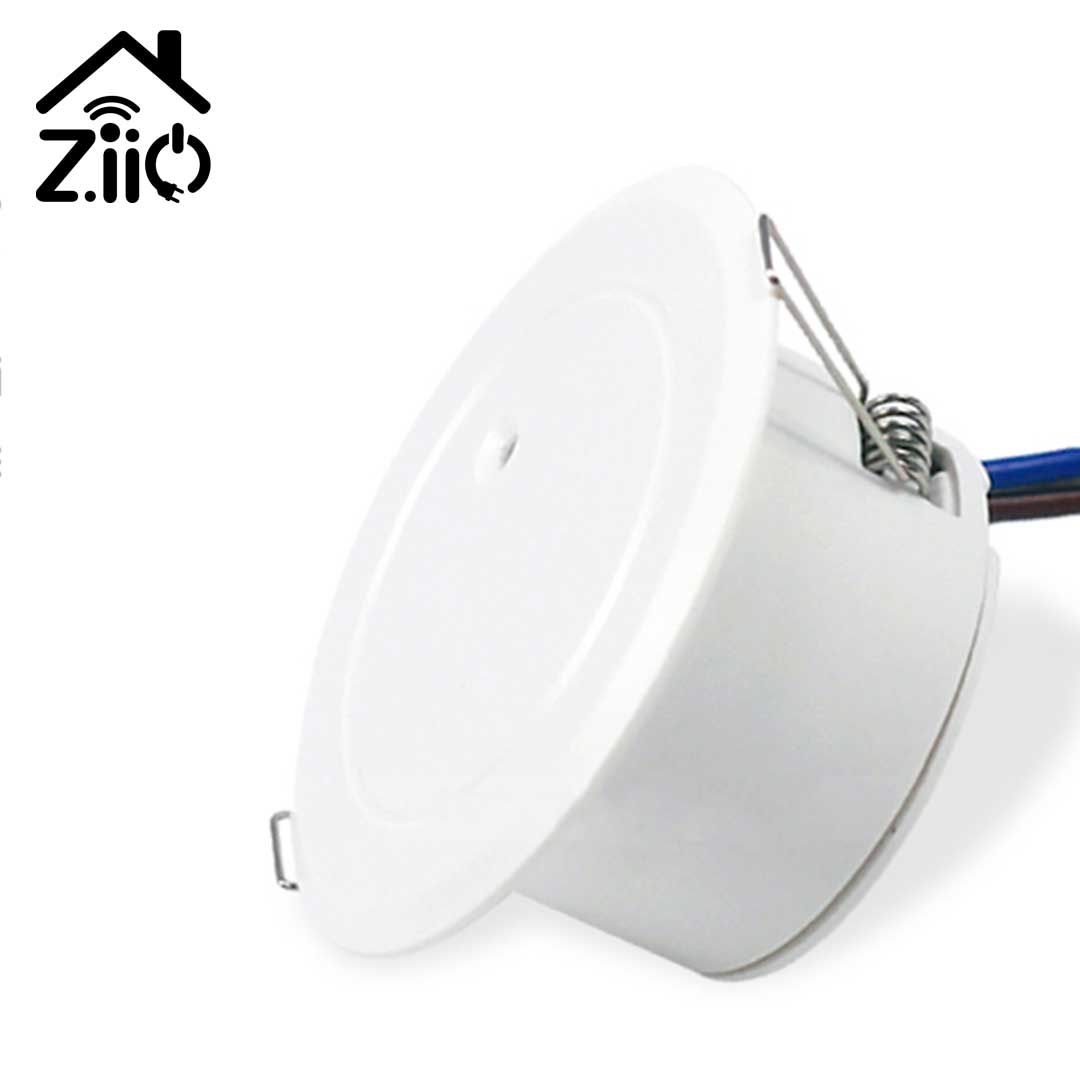

Microwave Ceiling Mount Sensor
Order in the next [totalHours] hours %M minutes to get it between and
Description
7-Day Replacement Warranty for complete peace of mind

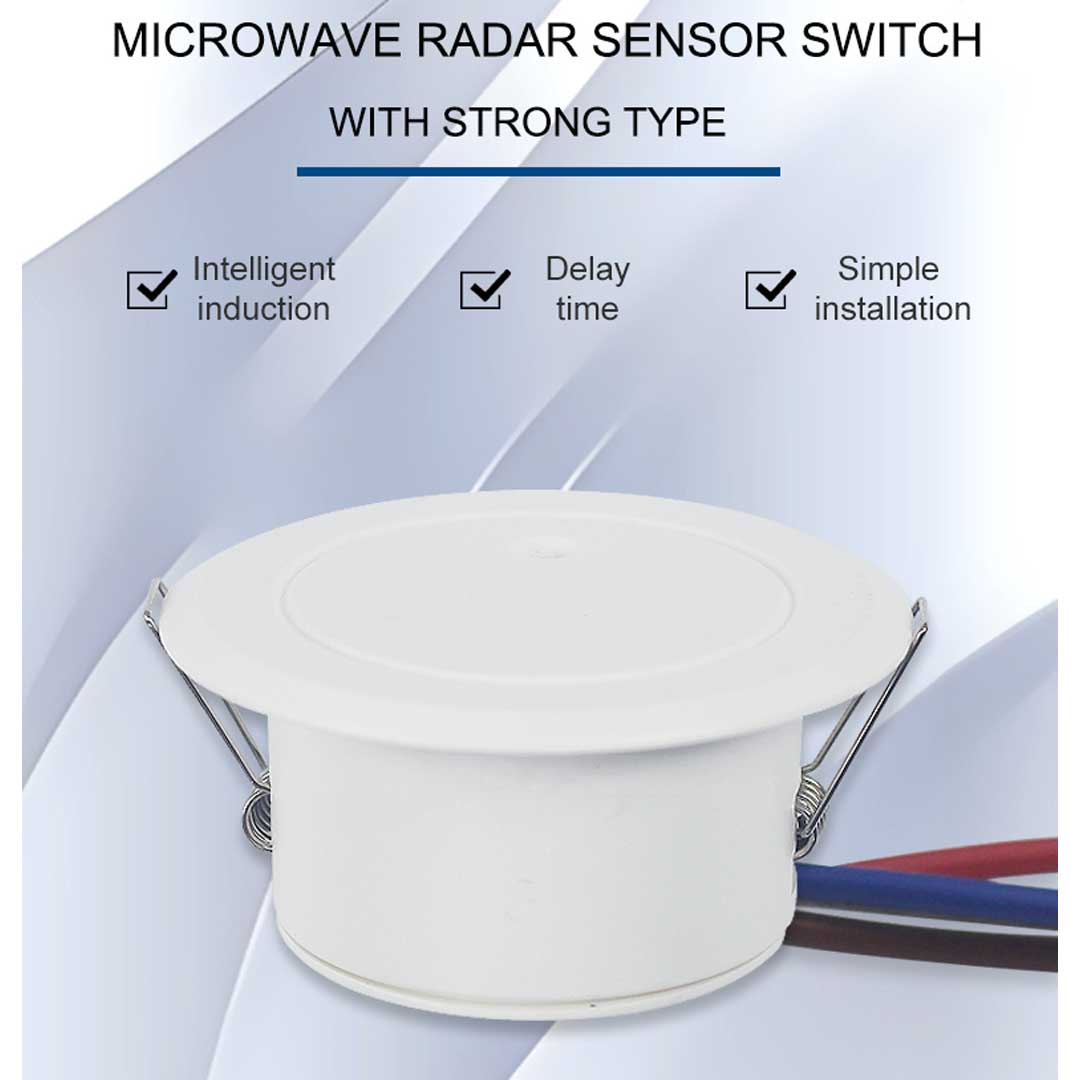

The Microwave Ceiling Mount Sensor is a compact, intelligent motion sensor designed to provide automatic lighting control in indoor environments. It uses microwave radar technology (operating at 4.1 GHz) to detect motion through doors, glass, or thin walls, making it more sensitive and accurate than traditional infrared (PIR) sensors.
This sensor is ideal for energy-saving applications in residential, commercial, and industrial settings. It automatically switches connected lights on when movement is detected and off after a preset delay if no movement is detected. Its adjustable light sensitivity (7–20 Lux) ensures it only operates in low-light conditions, adding further efficiency.
Key Features
- Wide Voltage Range: Operates on AC 100V–240V (50/60Hz)
- Microwave Motion Detection: 3–5 meter detection range with 360° coverage
- Time Delay Function: Adjustable delay (default: 20 ± 5 seconds) after no motion
- Photosensor Function: Prevents activation during daylight, saving energy

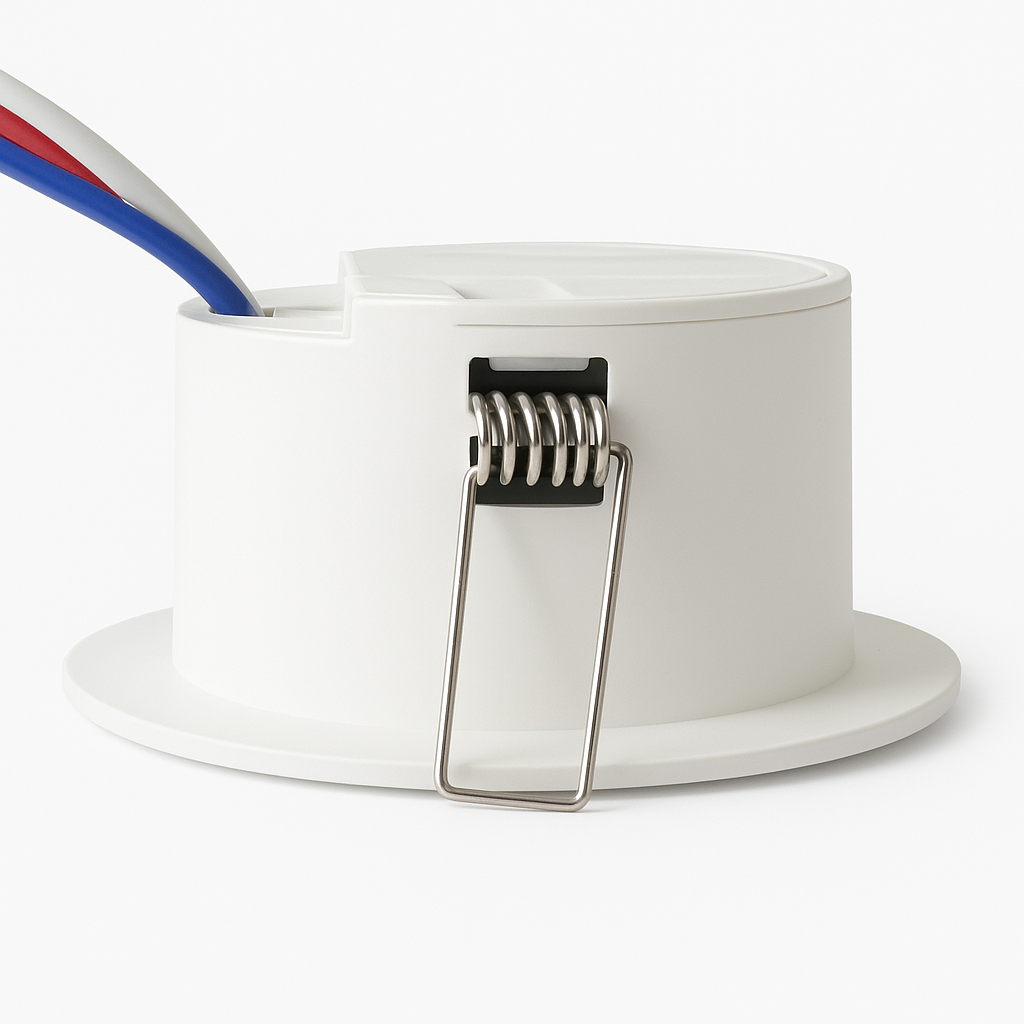

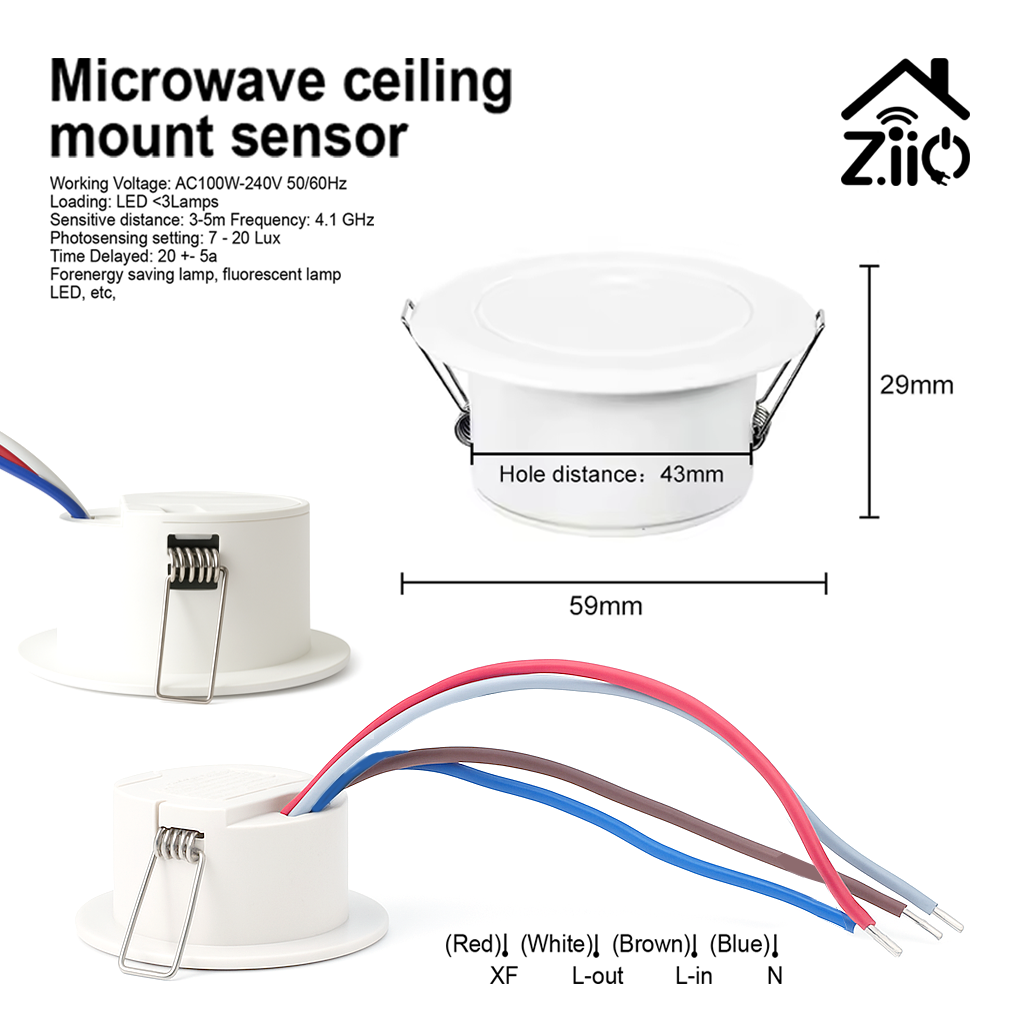

- Compact Ceiling-Mount Design: Discreet and easy to install
- High Compatibility: Supports LED, fluorescent, and energy-saving lamps (up to 3 LEDs)
- Safe & Reliable: Ideal for hallways, bathrooms, storage rooms, staircases, and garages

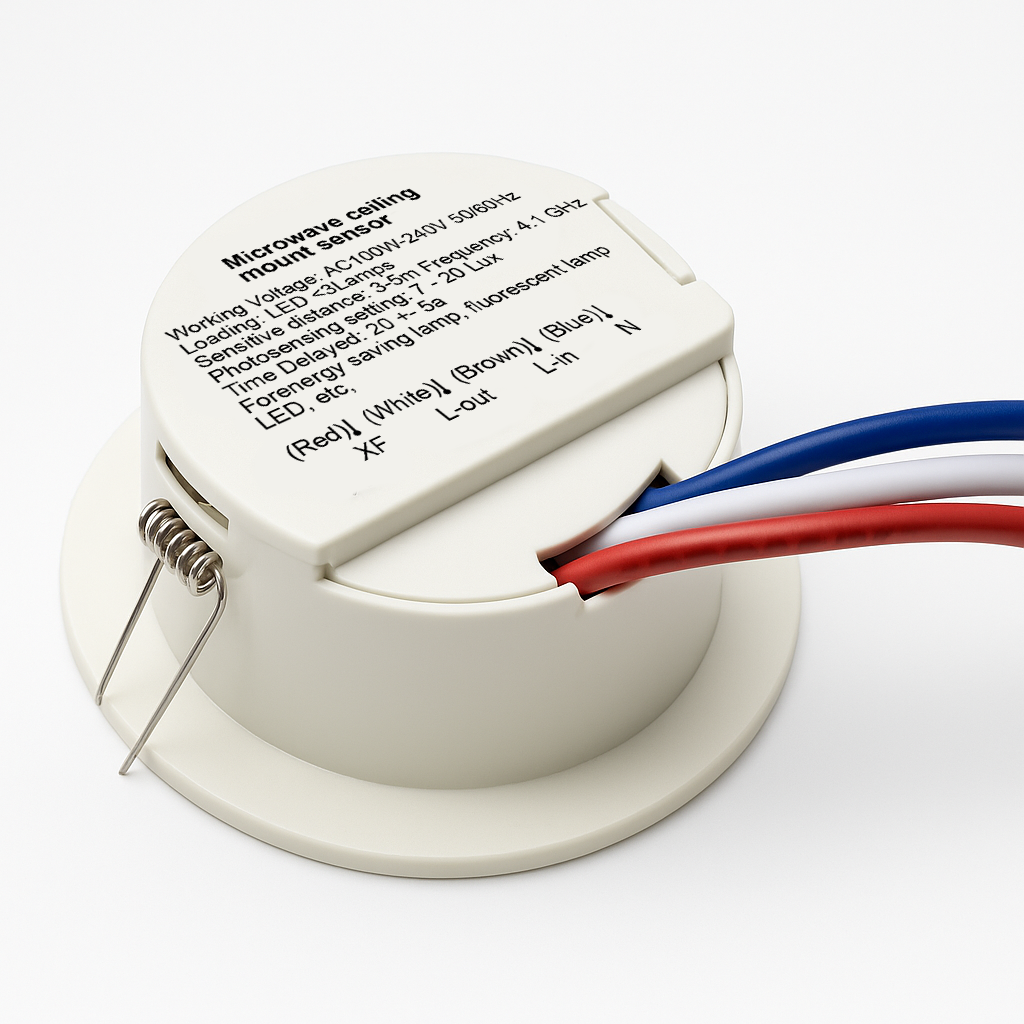

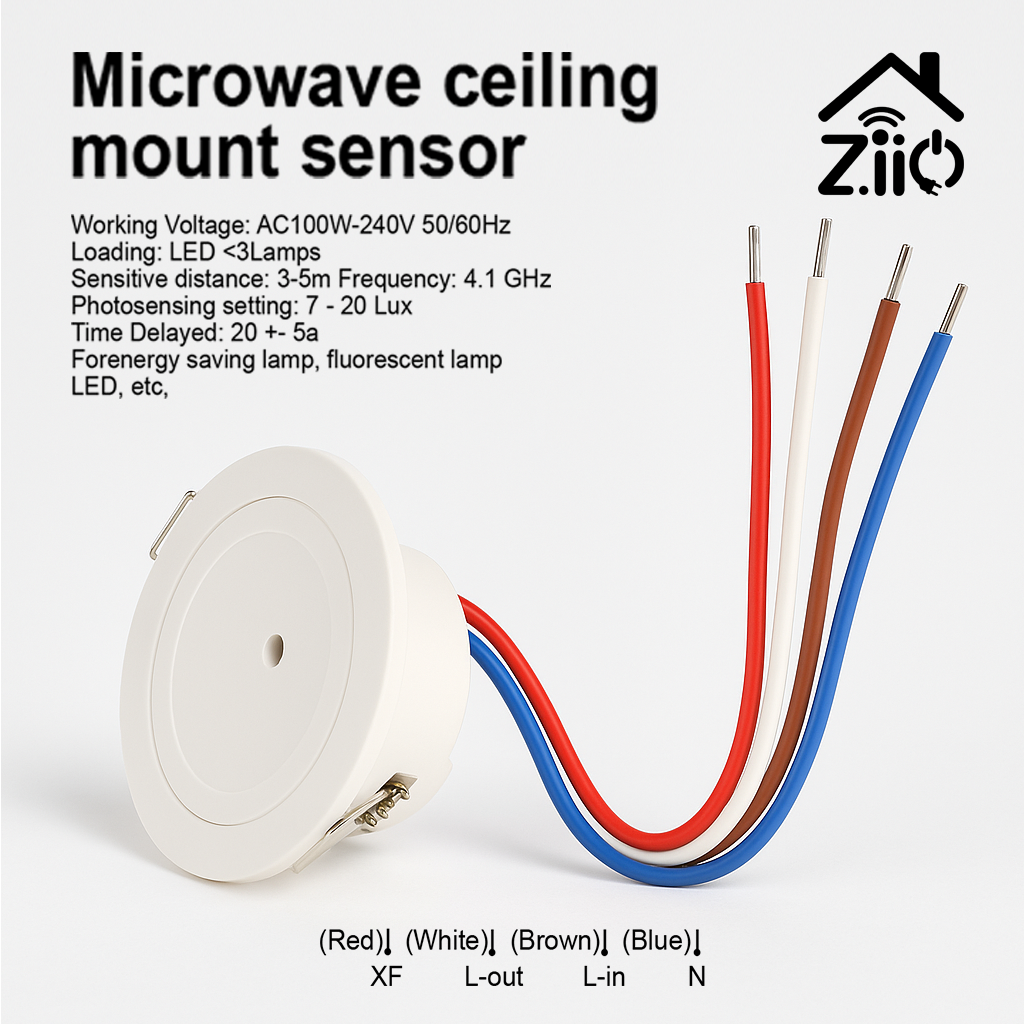

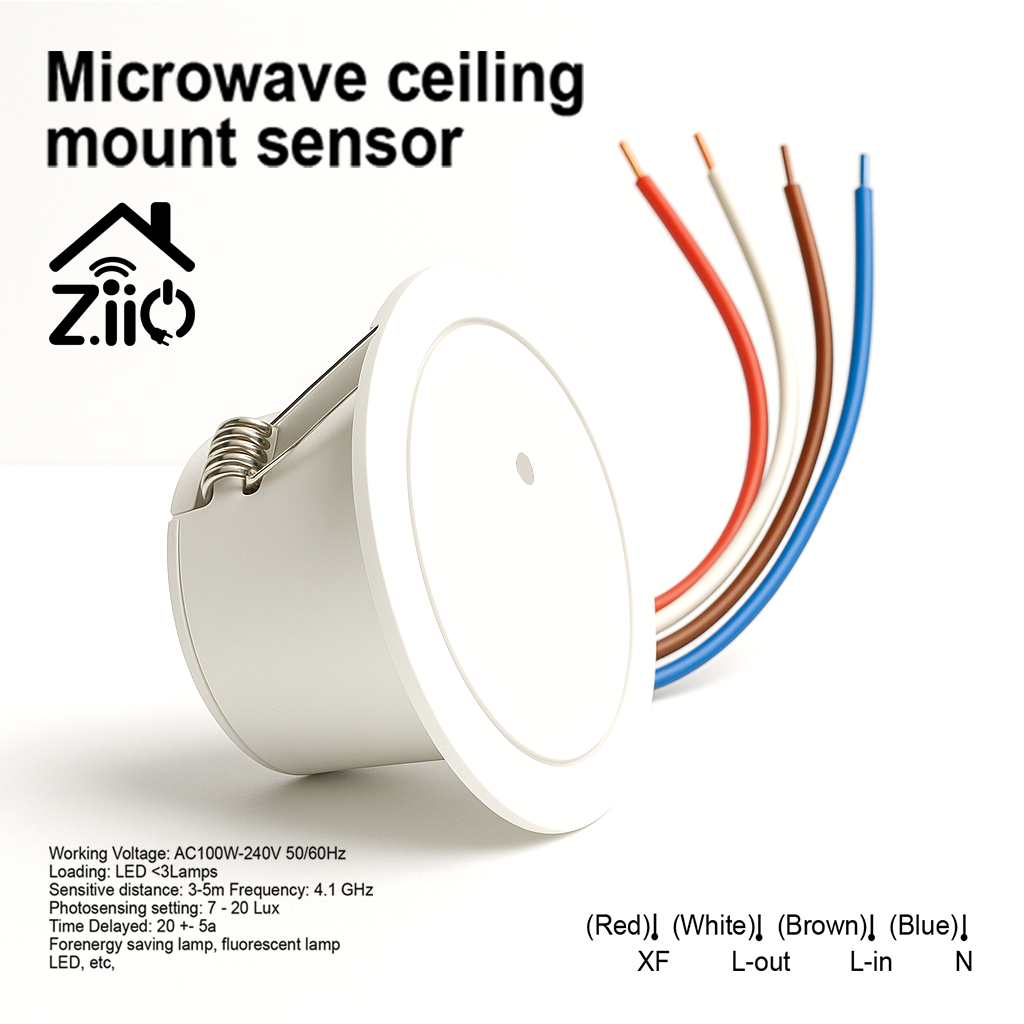

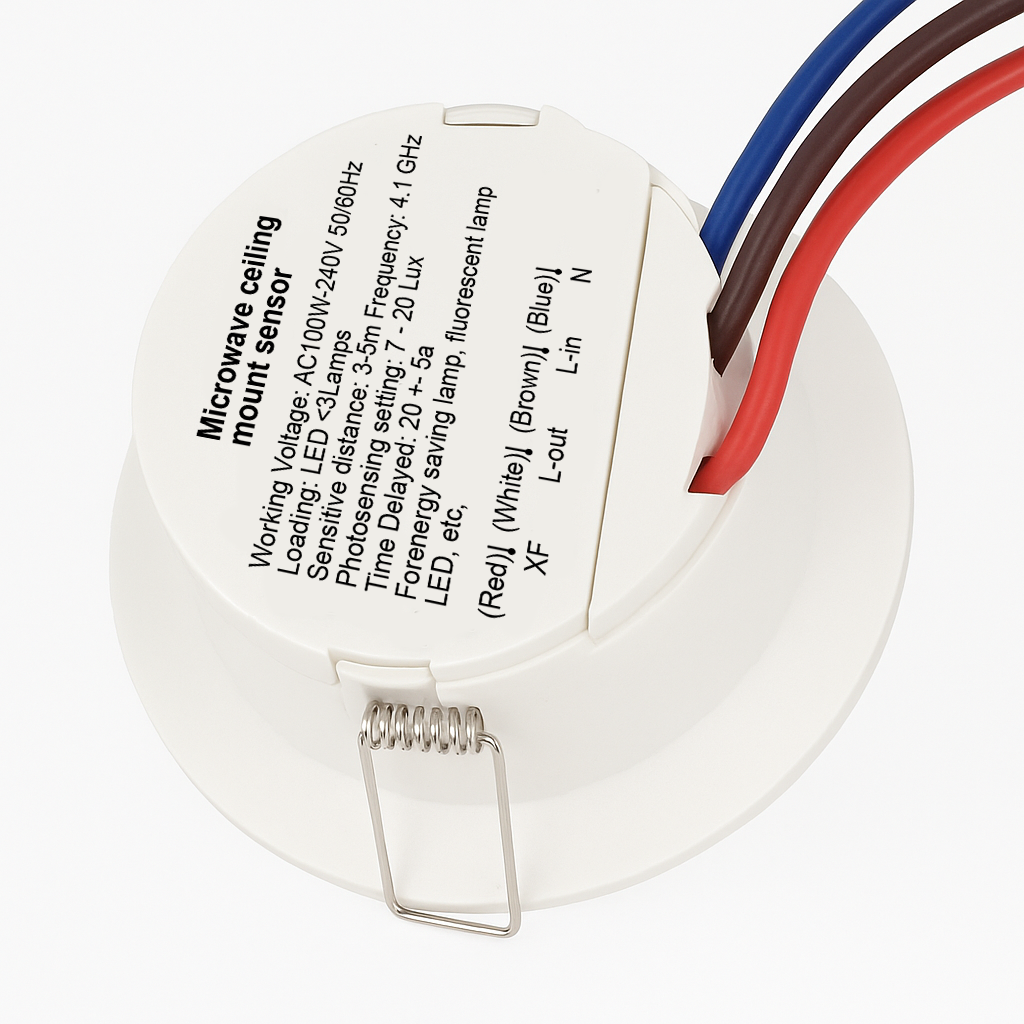

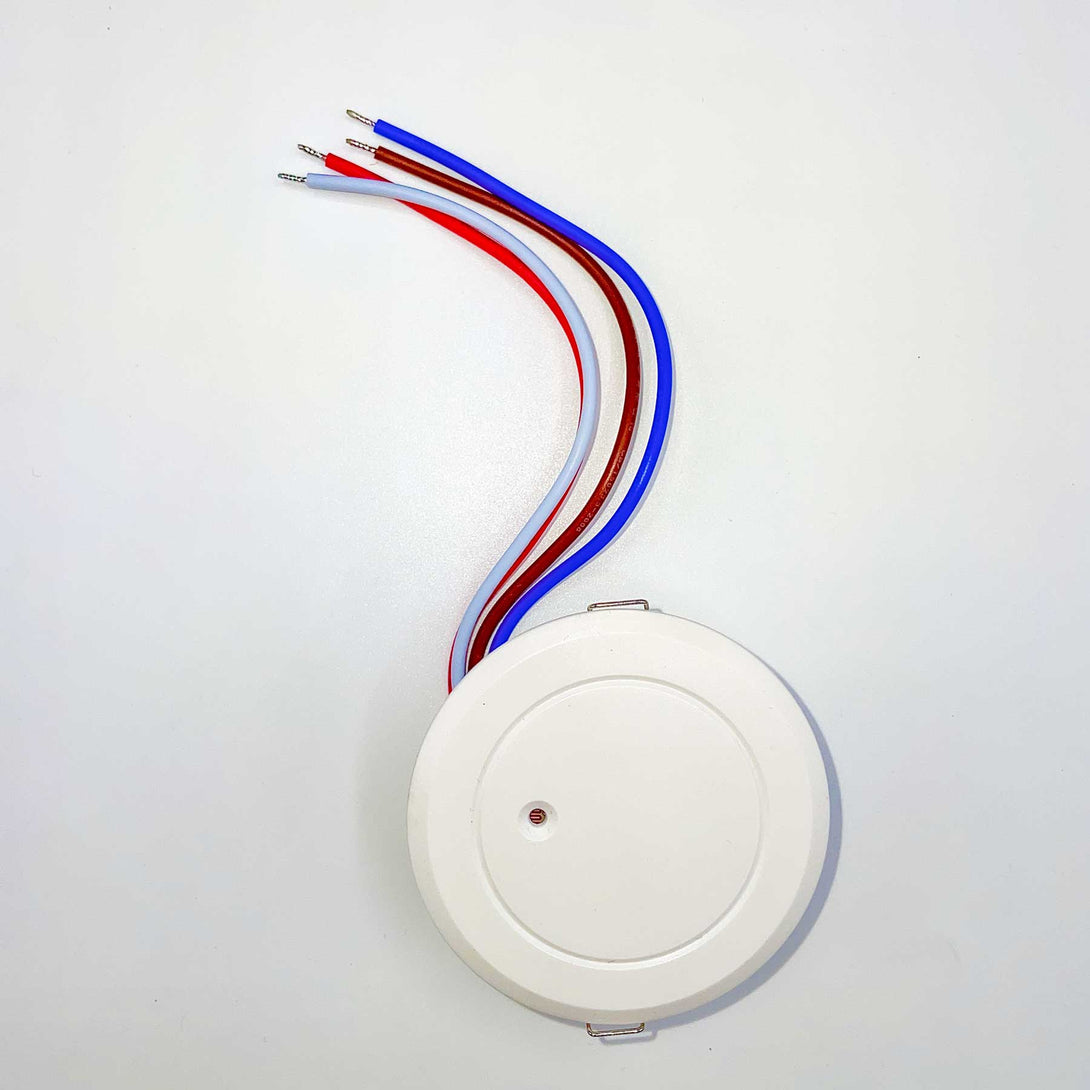

Wiring Details
- Red (XF): Function trigger line
- White (L-out): Load output (to light)
- Brown (L-in): Live input (from power source)
- Blue (N): Neutral wire
Applications
- Home automation
- Office buildings
- Restrooms
- Hotels
- Warehouses
- Public corridors
