E27 PIR Motion Sensor Light Socket Adapter

Rs.2,000.00 Rs.1,399.00
Order in the next [totalHours] hours %M minutes to get it between and
Description

7-Day Replacement Warranty for complete peace of mind

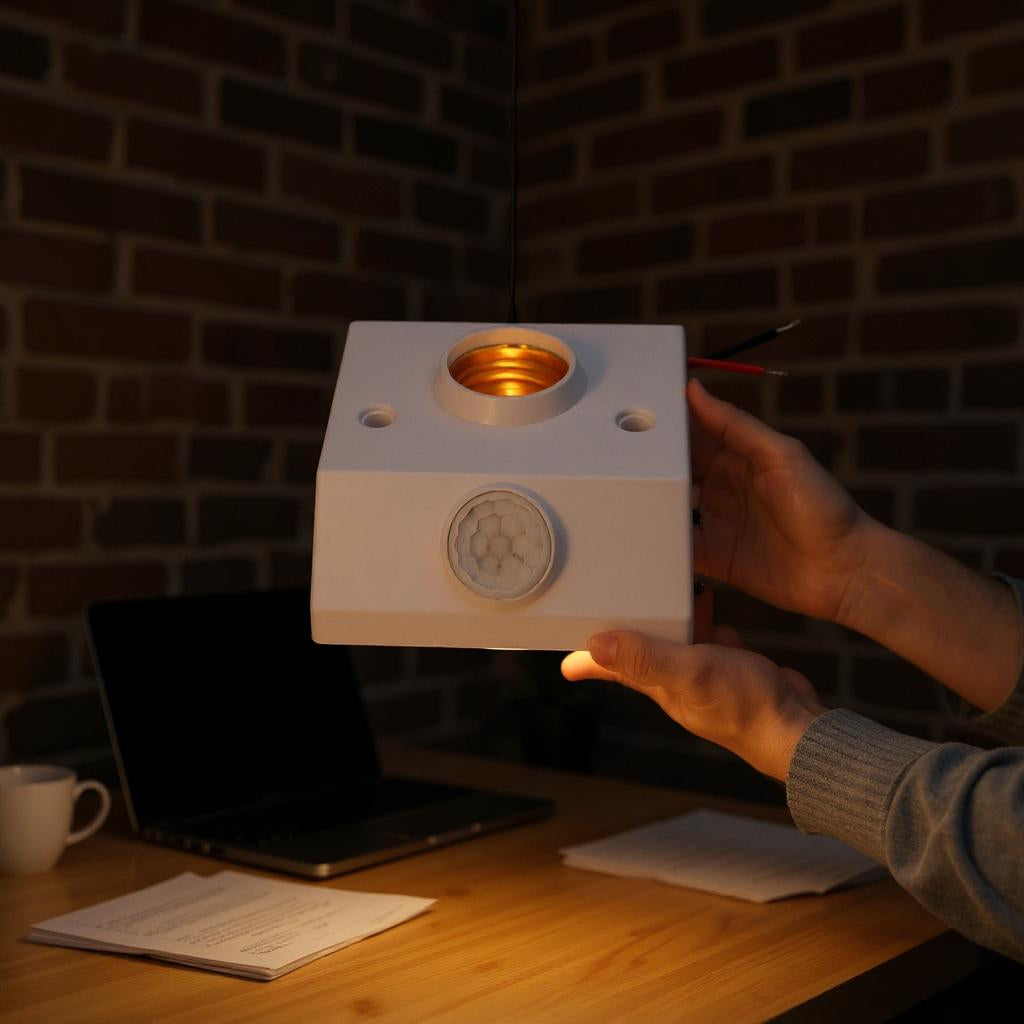

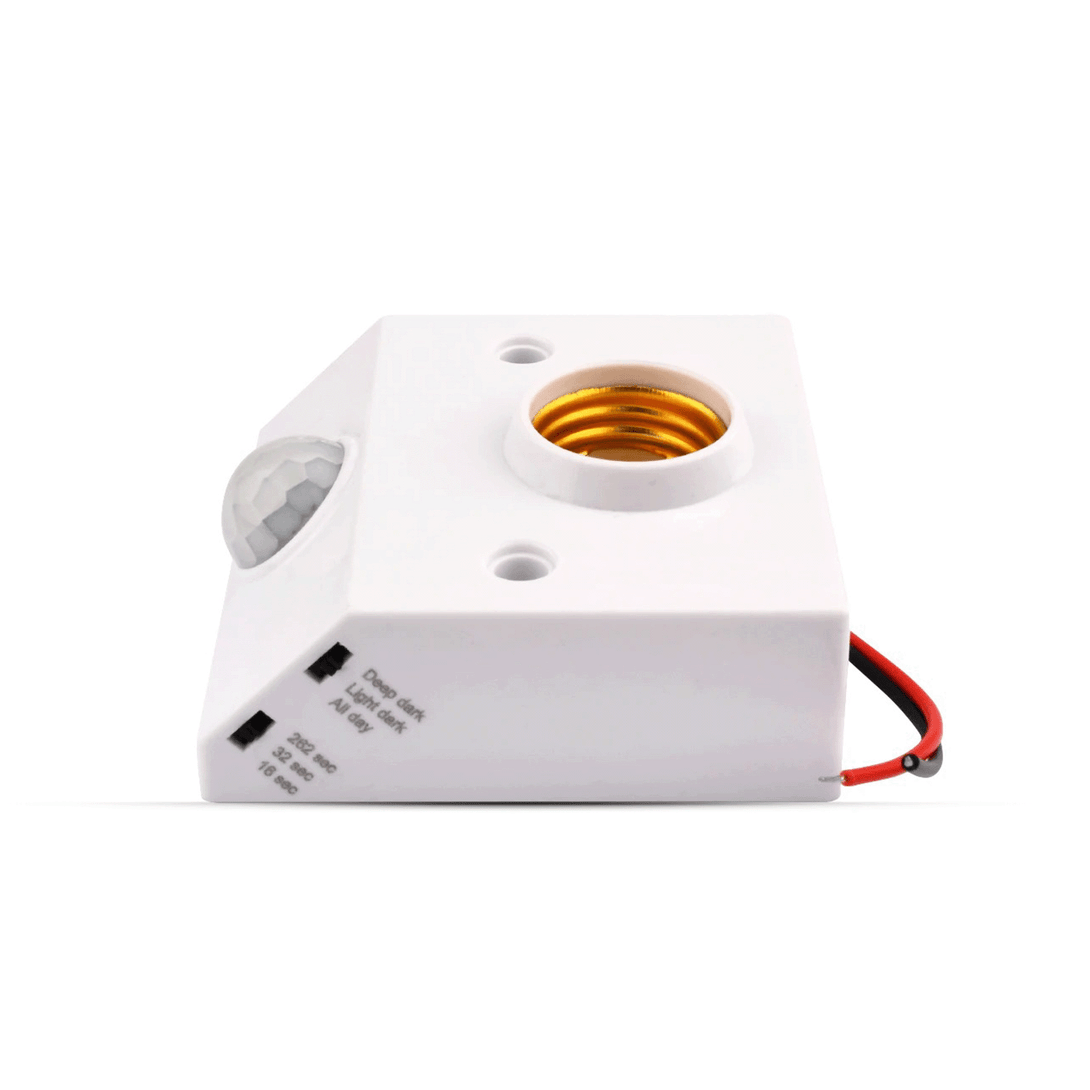

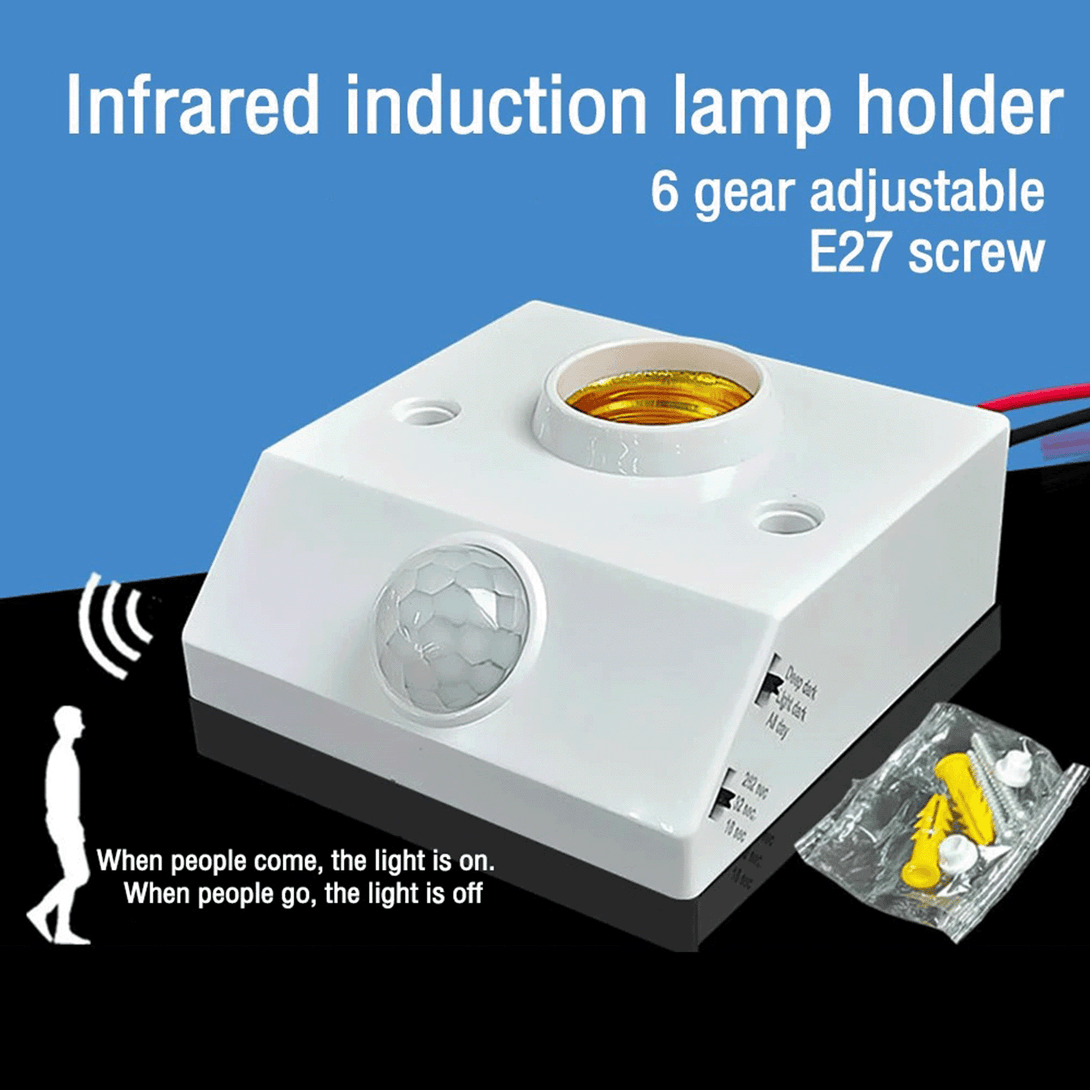

This is a ceiling/wall-mountable light socket adapter with a built-in PIR (Passive Infrared) motion sensor. It allows a standard screw-type light bulb (E27/E26 base) to turn on automatically when motion is detected and turn off after a set time.

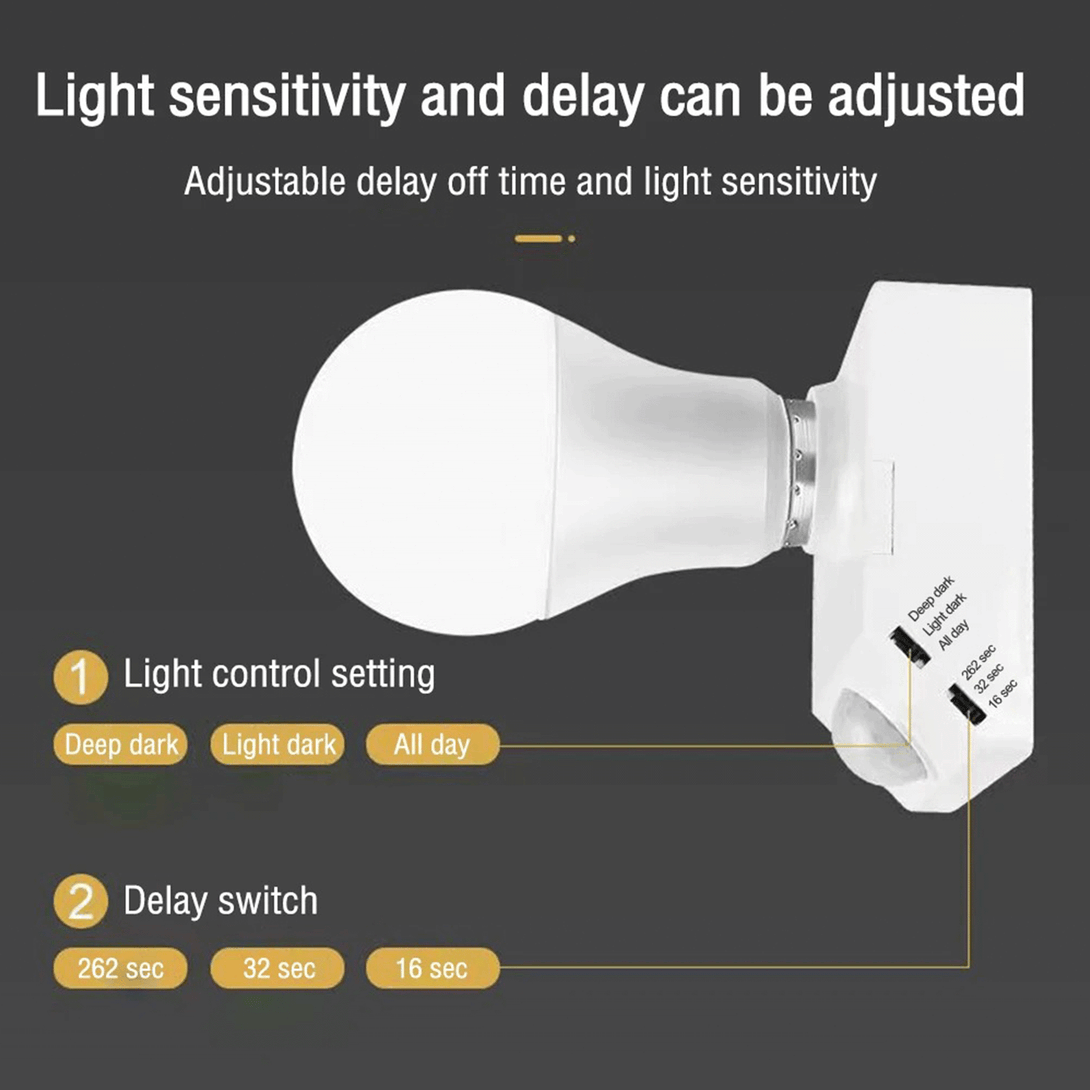

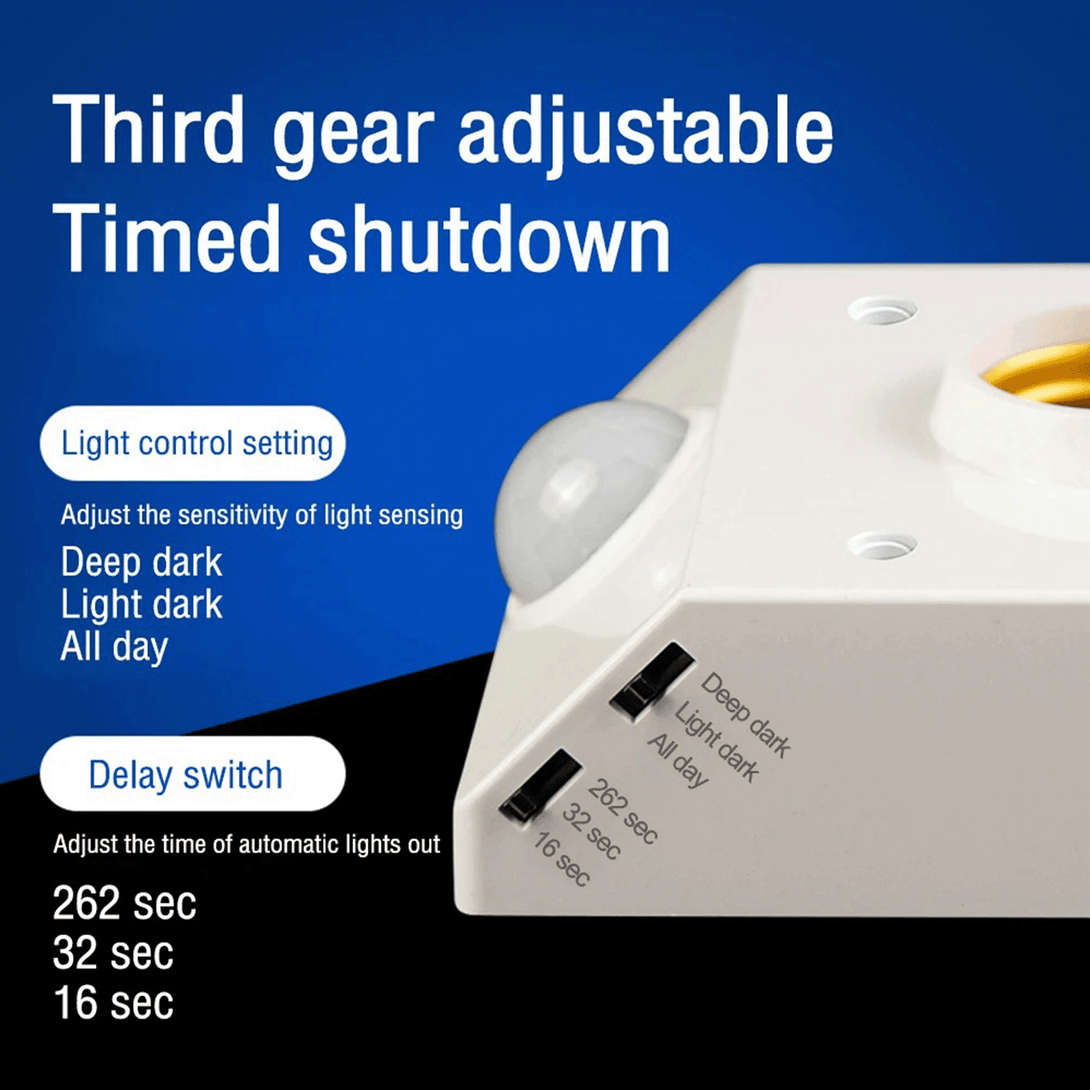

Adjustment Options (visible on the side)

  • Light Sensitivity Settings:
    • "Dark only": Only works at night
    • "Dim light": Works in low light
    • "All day": Works regardless of light level
  • Time Delay Settings (Examples):
    • 10 seconds
    • 30 seconds
    • 1 minute
    • 5 minutes

Installation Instructions

  1. Turn off the power supply to the fixture.
  2. Connect:
    • Red wire to live wire (L)
    • Black wire to neutral wire (N)
  3. Mount the unit using screws through the two provided holes.
  4. Screw in a compatible E27/E26 bulb.
  5. Restore power and adjust the delay time and light sensitivity settings as needed.

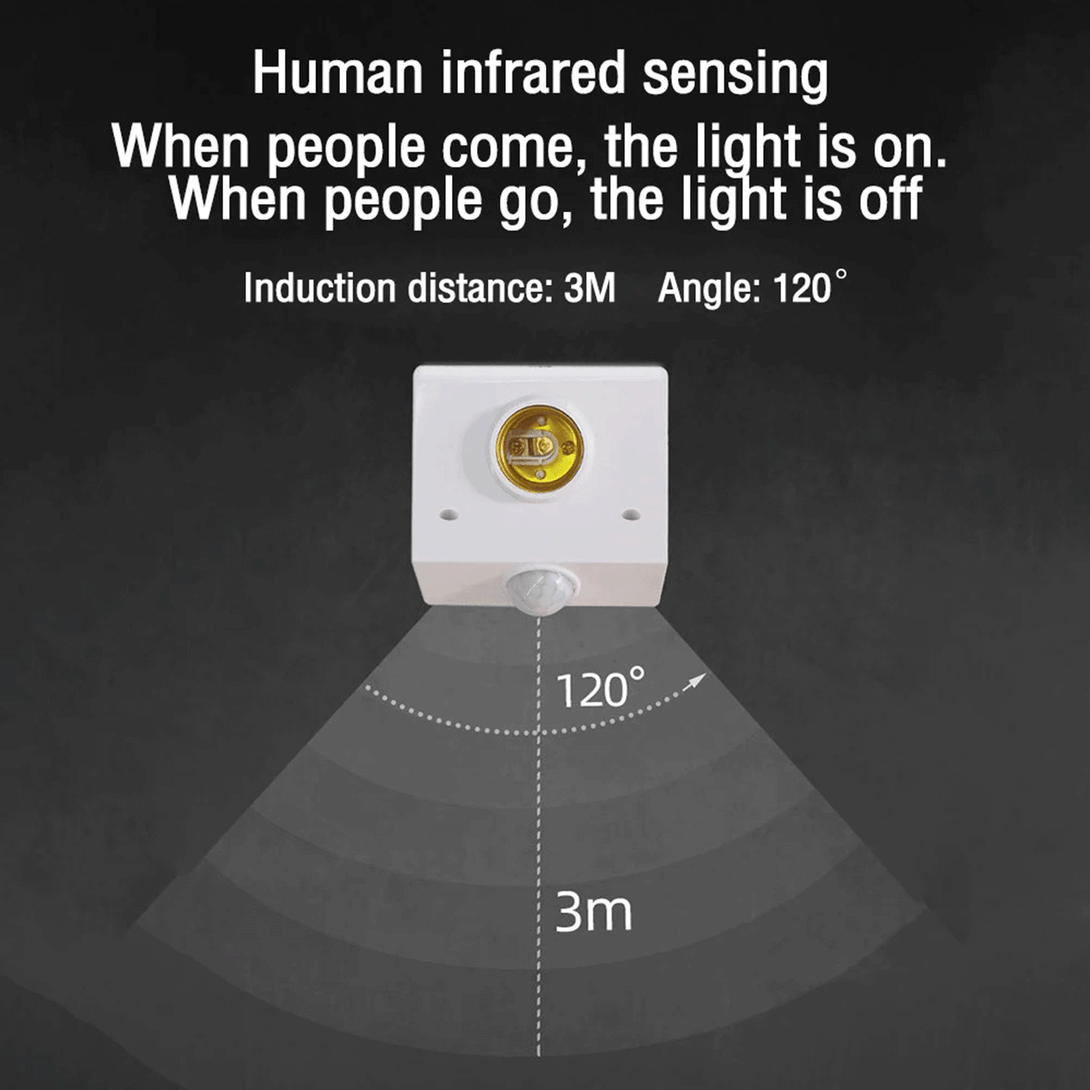

How It Works

  • The PIR sensor detects infrared radiation (heat) from a moving body (like a person).
  • Once motion is detected within the sensing range:
    • The bulb turns on automatically.
    • It remains on for the set delay time, then switches off if no further motion is detected.

Advantages

  • Saves electricity by only turning on when needed.
  • Improves safety and convenience in low-light or hands-busy areas.
  • Easy retrofit—no need for smart systems or app control.

Things to Note

  • Use only LED or CFL bulbs compatible with motion sensors to prevent flickering.
  • Not recommended for use with dimmable bulbs unless specifically rated.
  • PIR sensors are less effective behind glass, curtains, or obstructions.
  • High ambient temperatures can slightly reduce detection accuracy.
