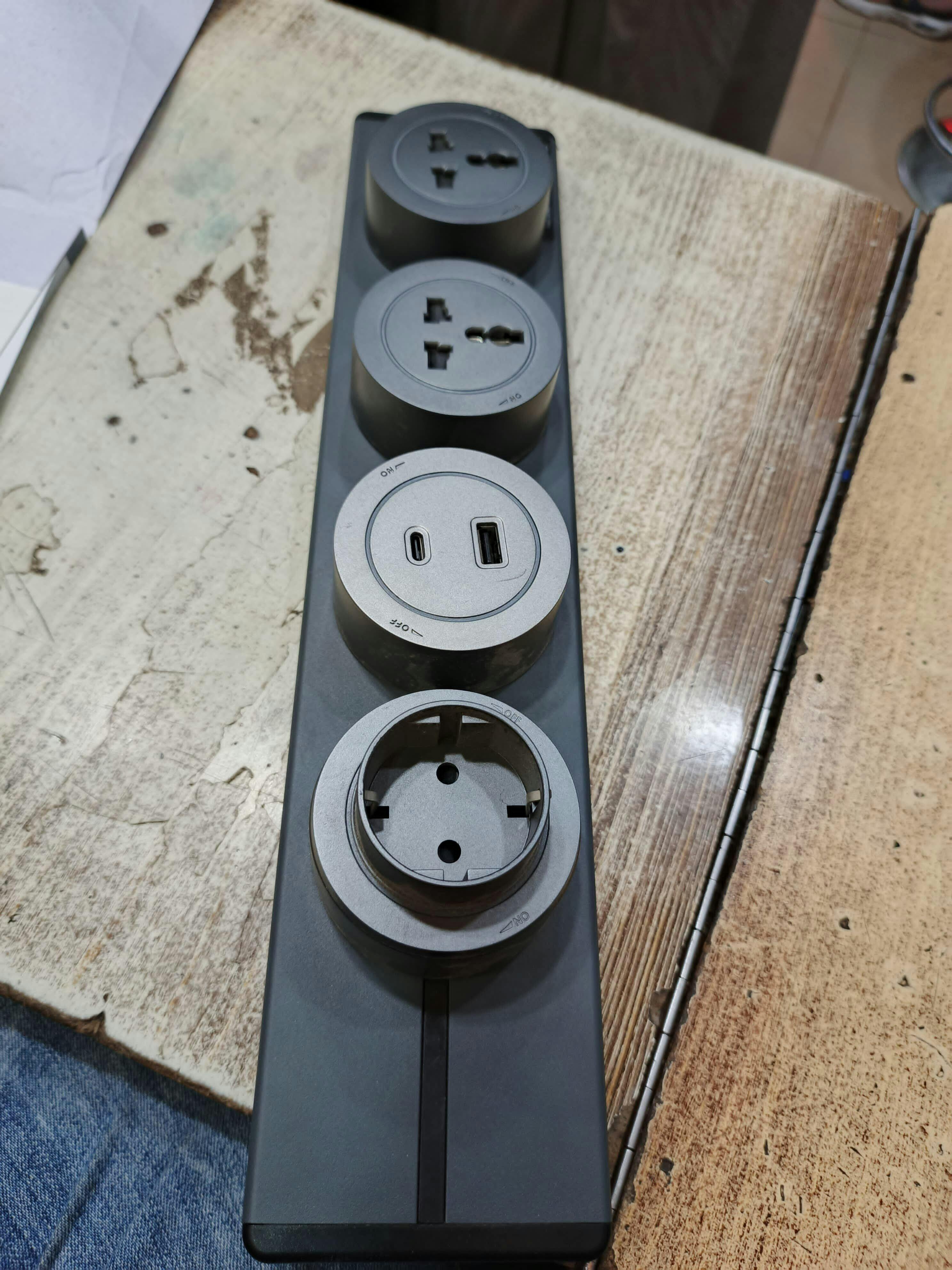

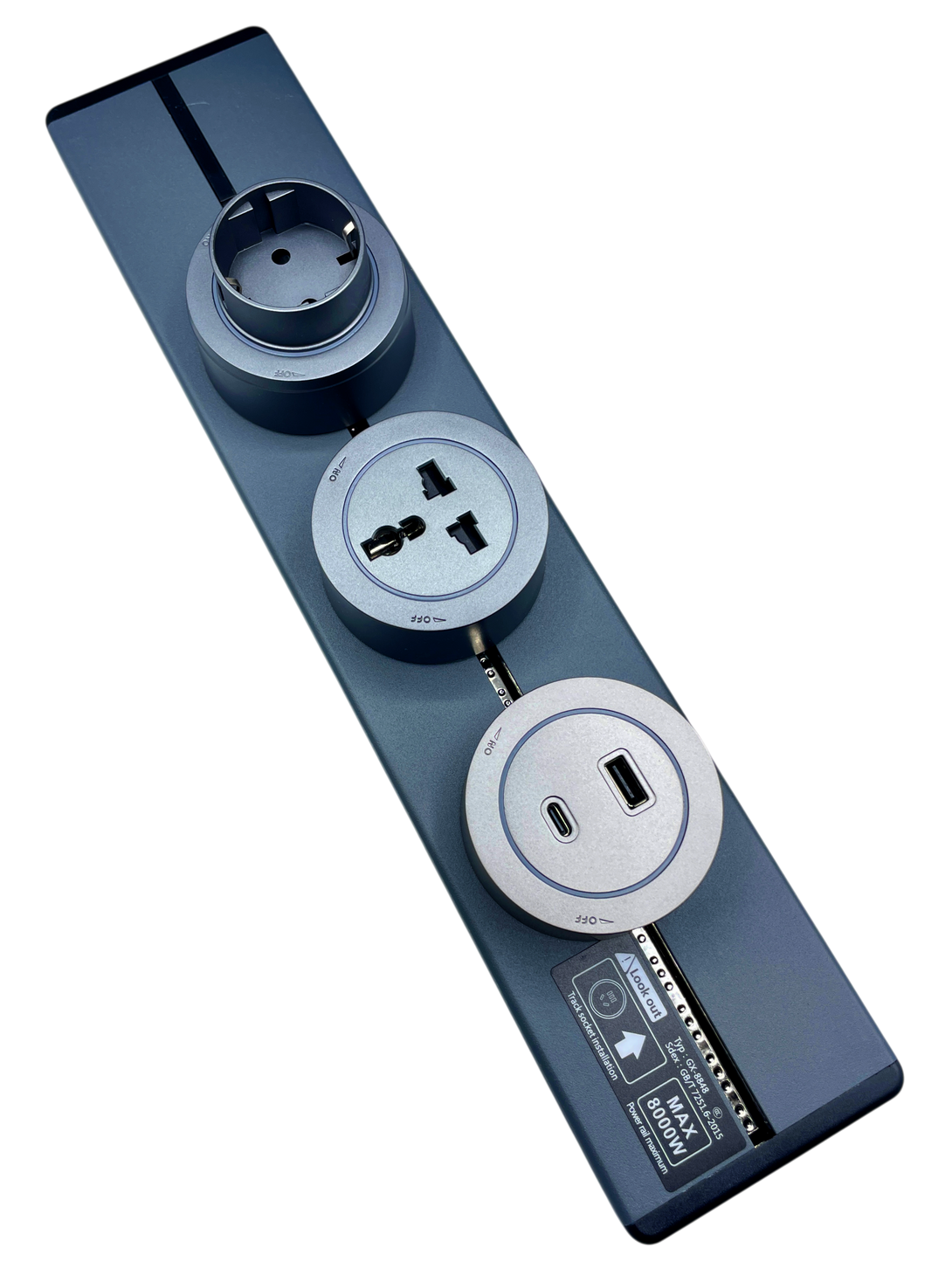

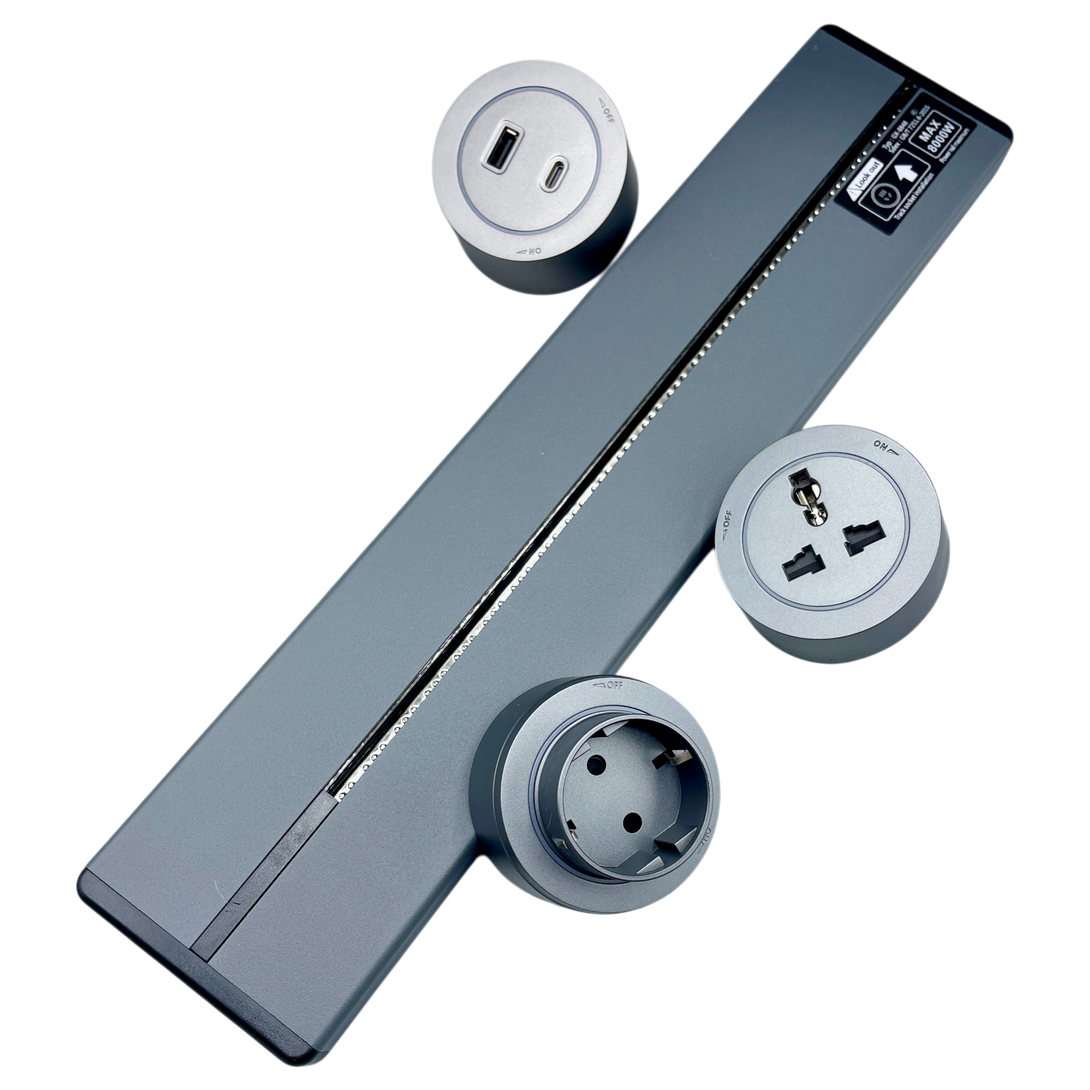

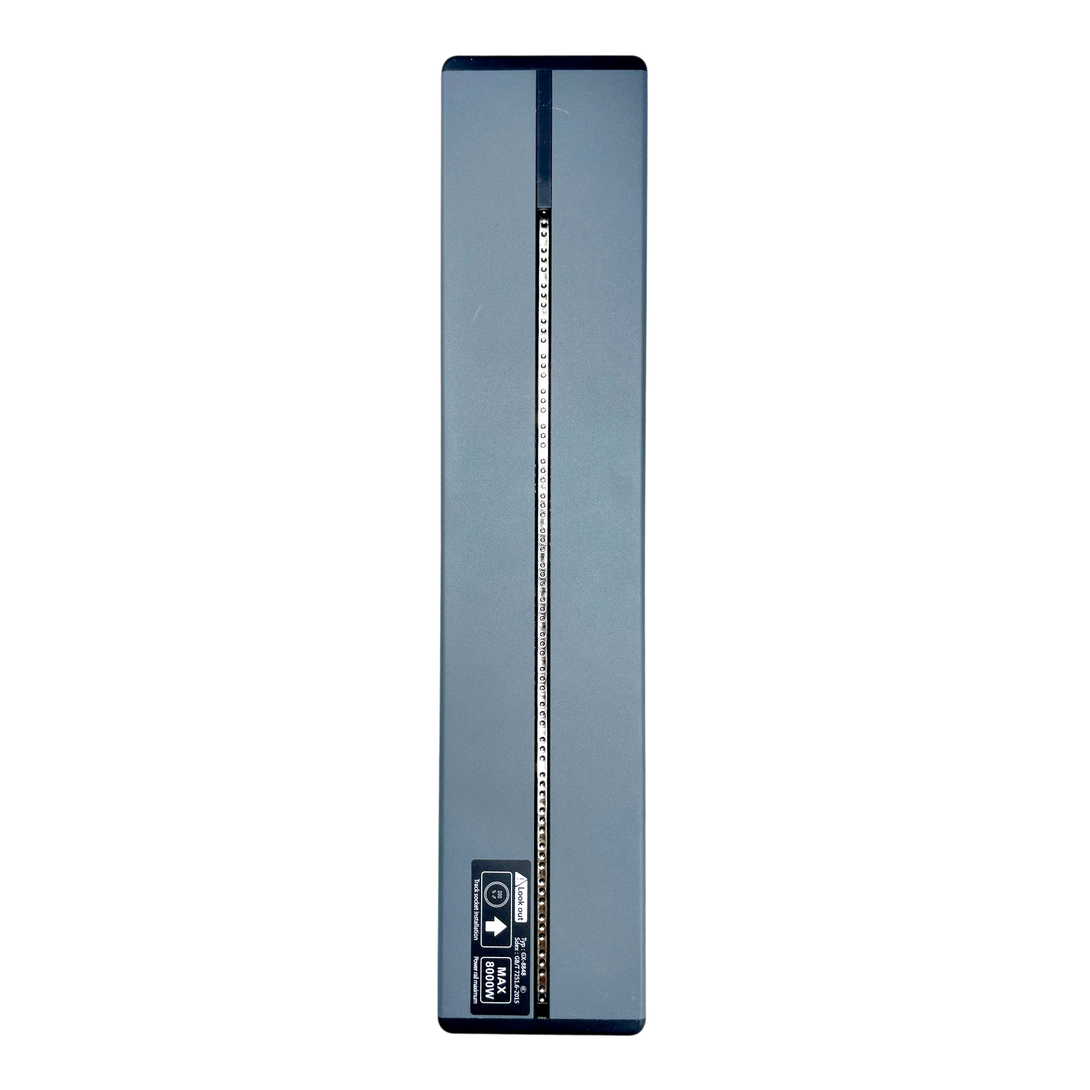

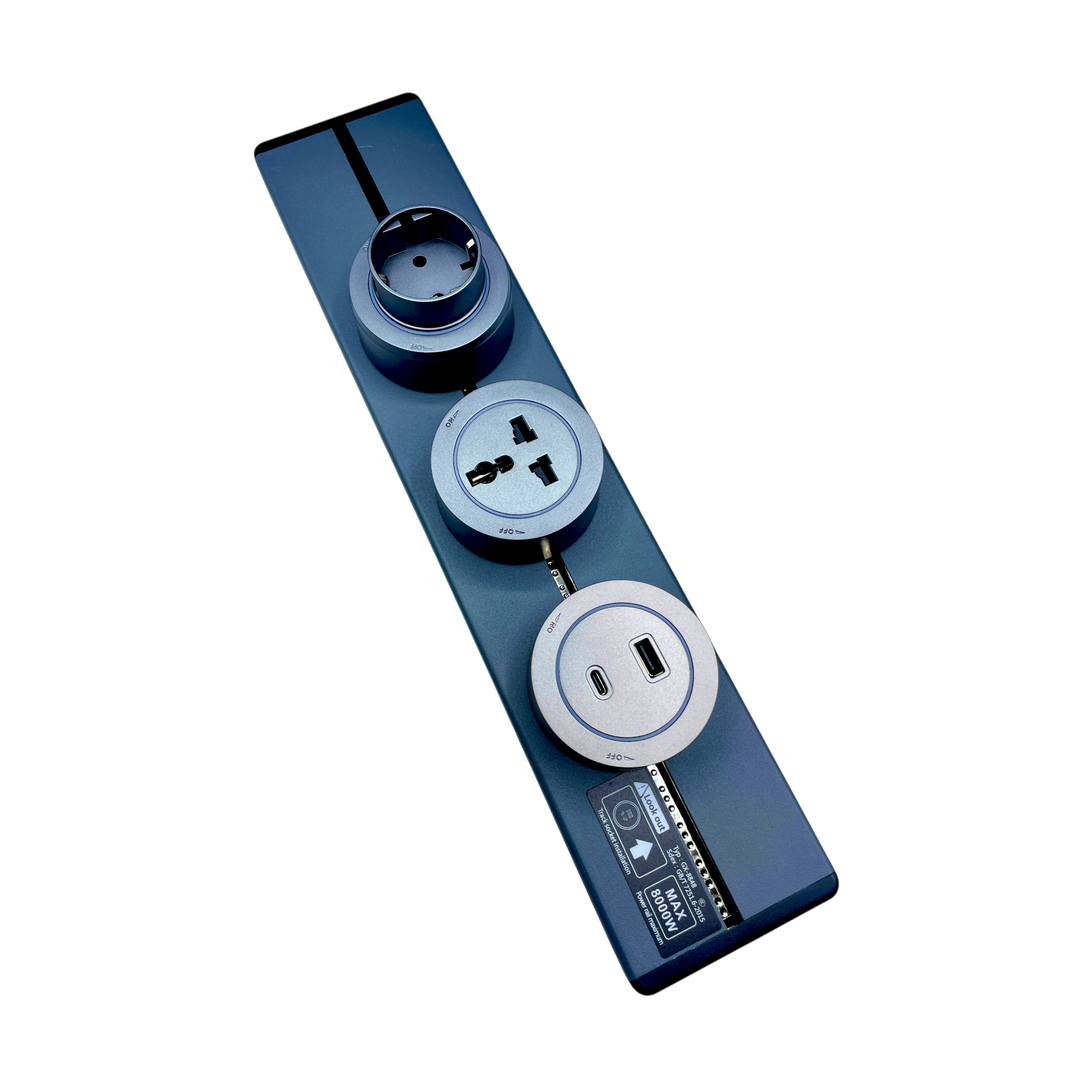

A. Power Track Rail

• Material: Aluminum alloy or industrial-grade ABS with a brushed matte finish.
• Design: Central conductive rail embedded with copper busbars for power distribution.
• Length: Varies (customizable; shown model approximately 40–50 cm).
• Color: Space grey or metallic graphite.
• Markings:
  • Maximum Load Capacity: 8000W.
  • Product Warnings: Labels indicating direction of module insertion, safety certifications, and operating standards.
• Electrical Standards:
  • Voltage: 220V–250V AC
  • Frequency: 50/60Hz
  • Max Power: 8000W
  • Suitable for grounded (earthed) power delivery.

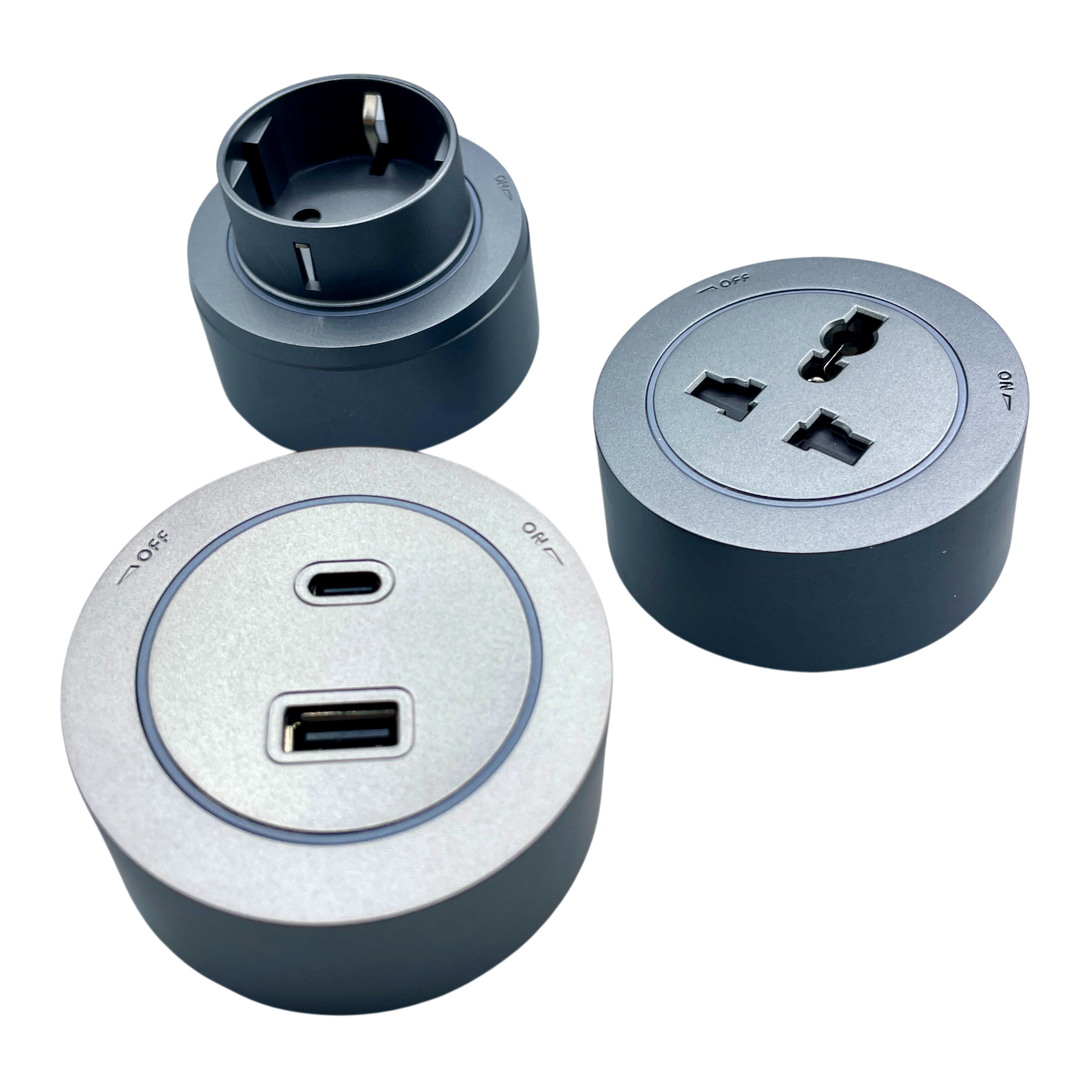

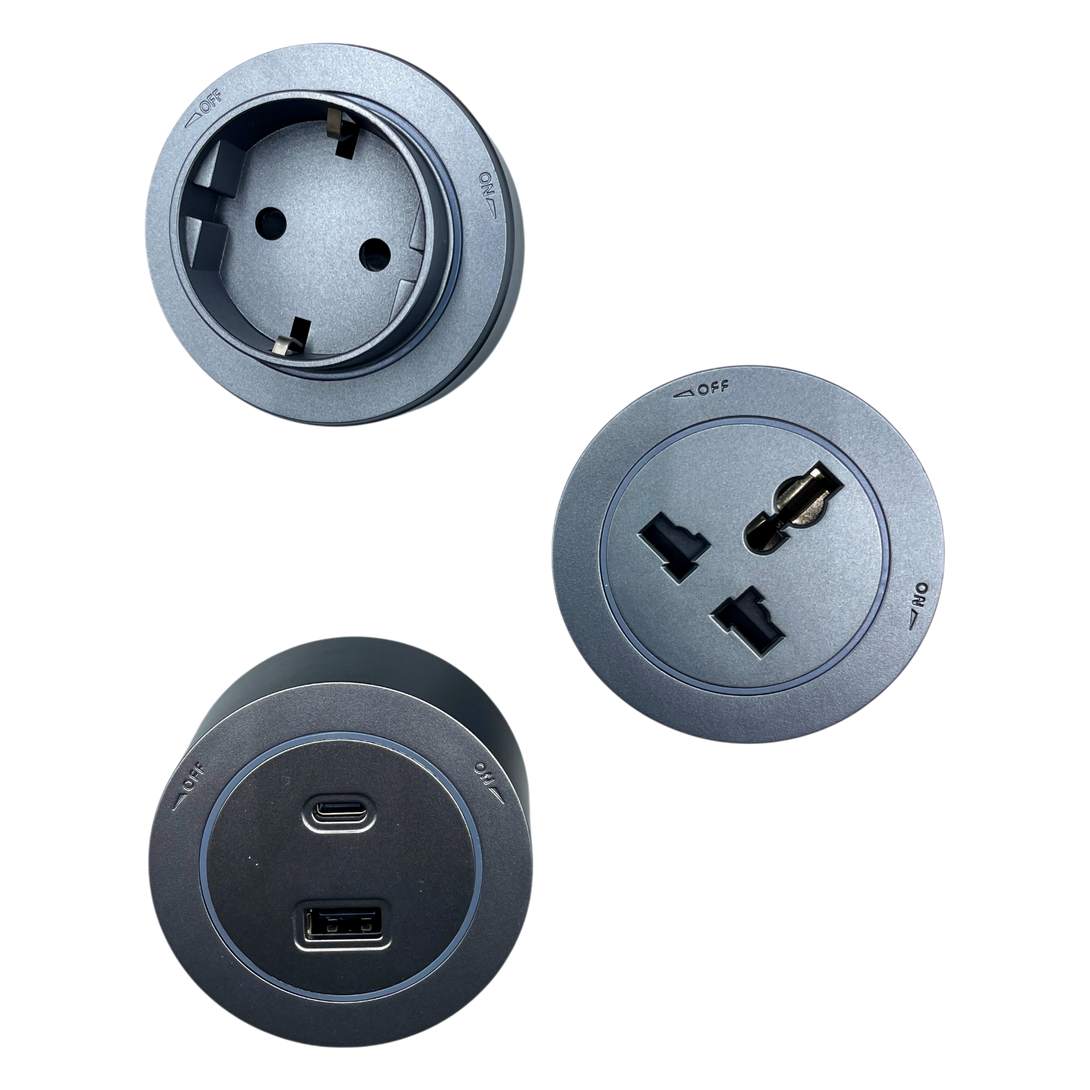

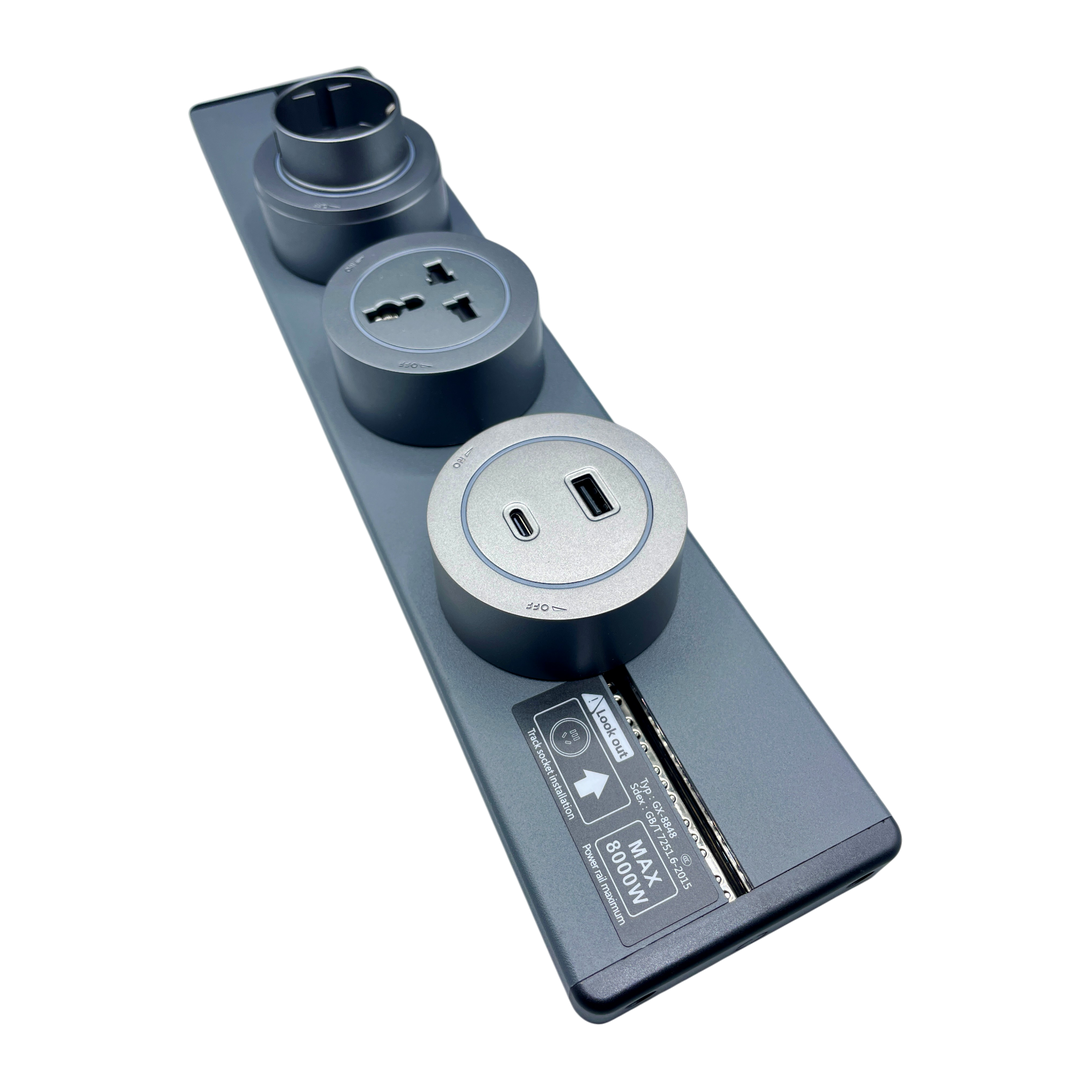

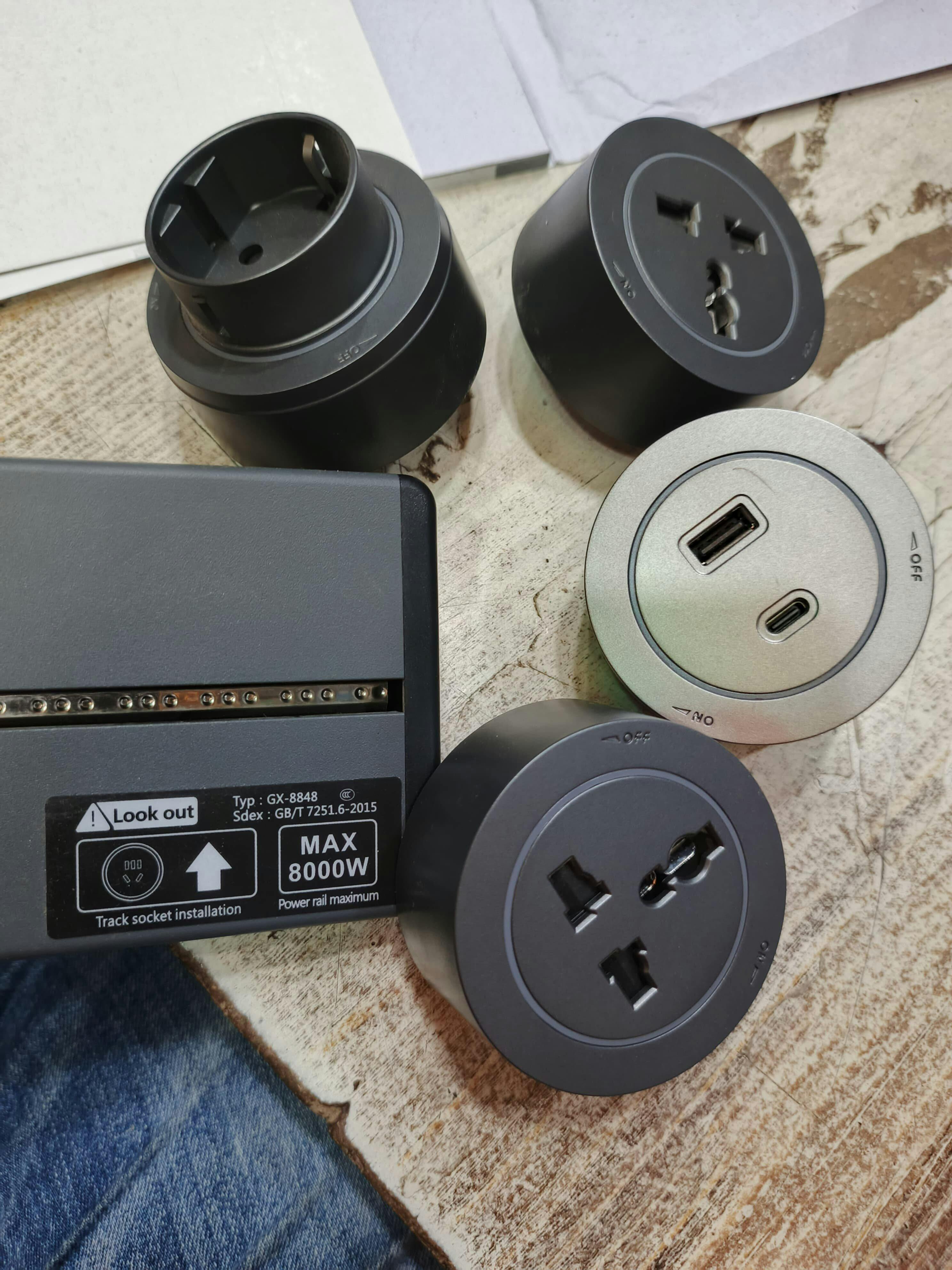

B. Modular Socket Units (Interchangeable Attachments)These units can be inserted into the track and twisted to lock into place and establish a connection.1. Type F (Schuko) Socket Module

• Socket Type: Schuko (CEE 7/3) – Two round prongs with side grounding clips.
• Use Region: Common in European Union countries and parts of Asia.
• Safety Feature: Locking rotation with ON/OFF marking to indicate live status.
• Current Rating: Typically supports up to 16A.

2. Universal Socket Module

• Socket Type: Multi-standard (Compatible with Type A, B, C, E, F, G, I, etc.)
• Function: Accepts plugs from over 150 countries.
• Safety Feature: Locking switch with ON/OFF indication.
• Use Case: Ideal for international offices, hotels, or global electronic device compatibility.

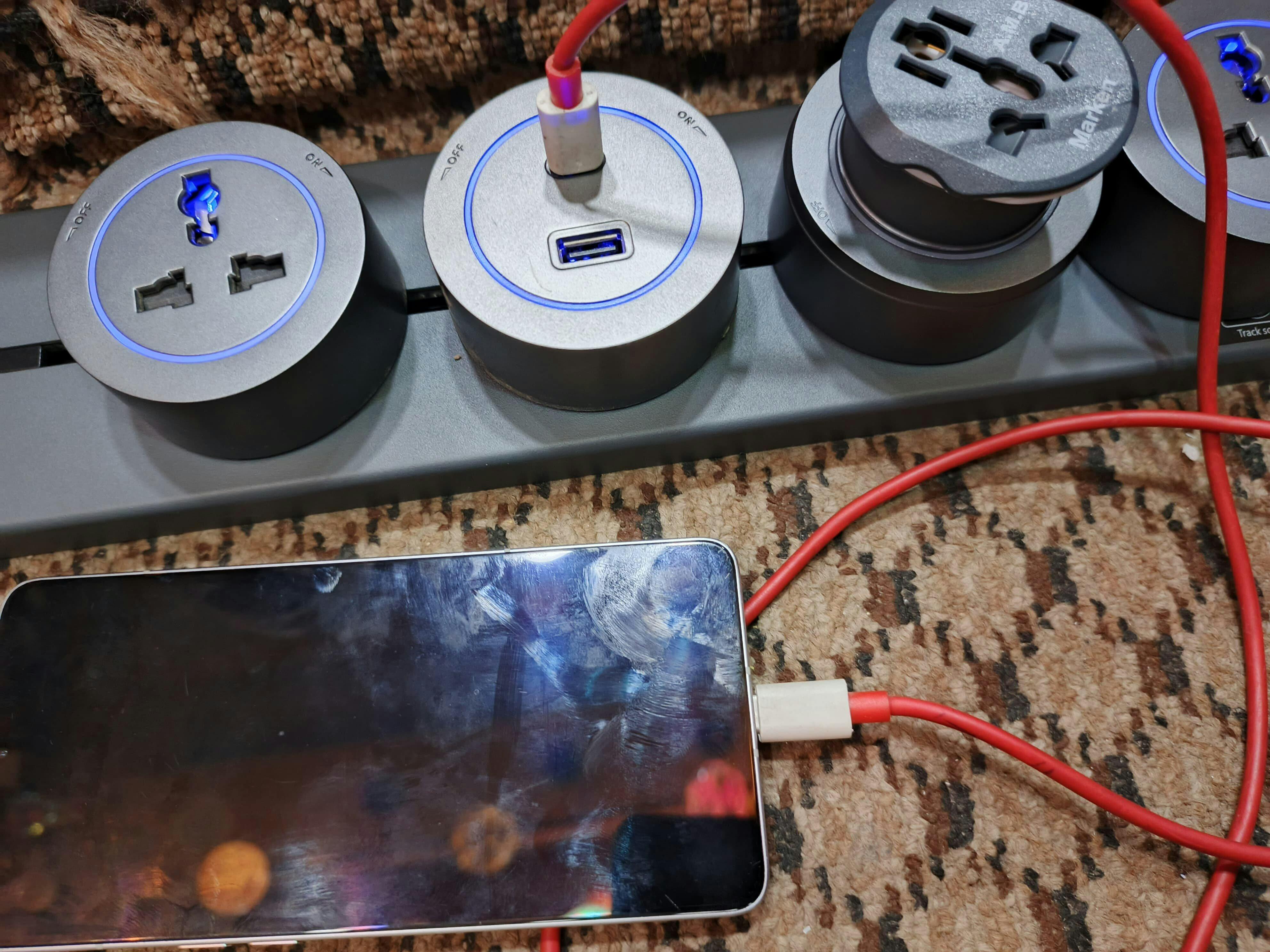

3. USB/Type-C Charging Module

• Ports: Includes USB-A and/or USB-C ports (not clearly visible in image but inferred from shape and common use).
• Application: Direct charging of mobile devices, tablets, and USB-powered peripherals.
• Power Output: Typically ranges from 5V/2.1A to PD 20W–65W depending on model.

 Locking & Safety Mechanism

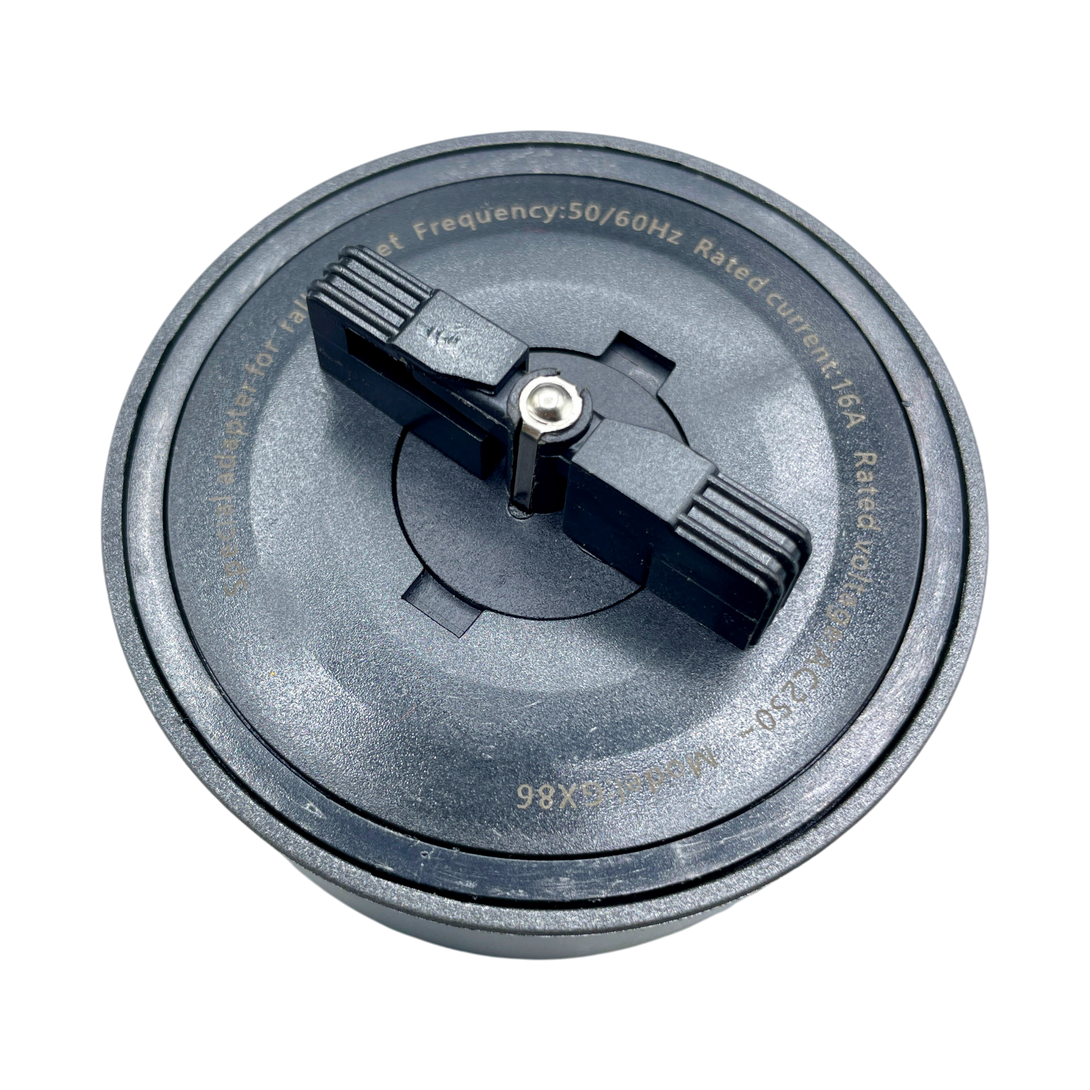

Each socket module features a mechanical twist-lock system, ensuring:

• Secure electrical contact with internal copper rails.
• Prevention of accidental disconnection.
• Clearly marked ON/OFF indicators to identify power status and alignment.
• Internal overload protection and grounding support for safety compliance.

Installation & Use

Installation Method:

• Can be mounted horizontally or vertically on desks, walls, or under counters.
• The track must be connected to a grounded power source via an appropriate plug or hardwiring (depending on model).

Usage Instructions:

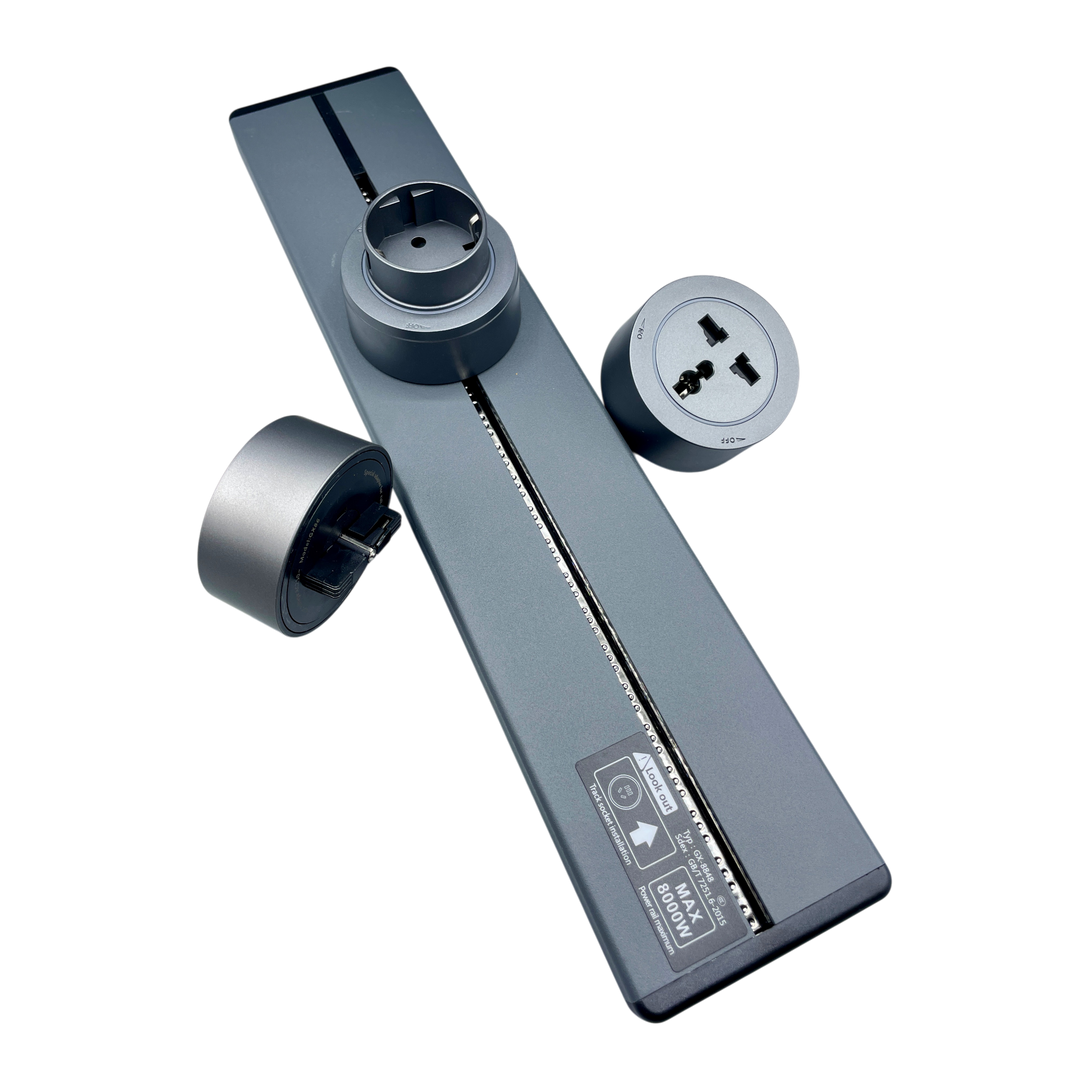

1. Align the socket module with the rail.
2. Insert into the groove and push down.
3. Rotate clockwise until the indicator points to ON.
4. To remove, rotate counterclockwise to OFF and pull out.

Environmental Conditions

• Indoor use only.
• Operating Temperature: 0°C to 40°C.
• Humidity: <85% RH (non-condensing).
• Keep away from water, corrosive chemicals, or extreme heat.

 Compliance and Certifications

(Based on labeling and typical compliance standards)

• CE Certification (assumed based on application and voltage).
• Overload Protection and Safety Conformance.
• Fire-Retardant Housing Material.
• RoHS and environmental compliance for use in regulated markets.

Key Advantages

• Modular & Scalable: Add or remove socket types as required.
• High Load Capacity: Supports up to 8000W — suitable for demanding electrical environments.
• International Compatibility: Suitable for global power plug types.
• Aesthetic Design: Professional look suitable for modern office environments.
• Quick Maintenance: Faulty modules can be replaced independently.

 Use Cases

• Corporate workstations with diverse power needs.
• Co-working spaces with international clients.
• Hotel rooms with multi-standard plug access.
• Industrial settings requiring flexible power access.
• Home offices with high-tech setups.
